Hyundai BC3 - Manual Climate Control System

5-57
05

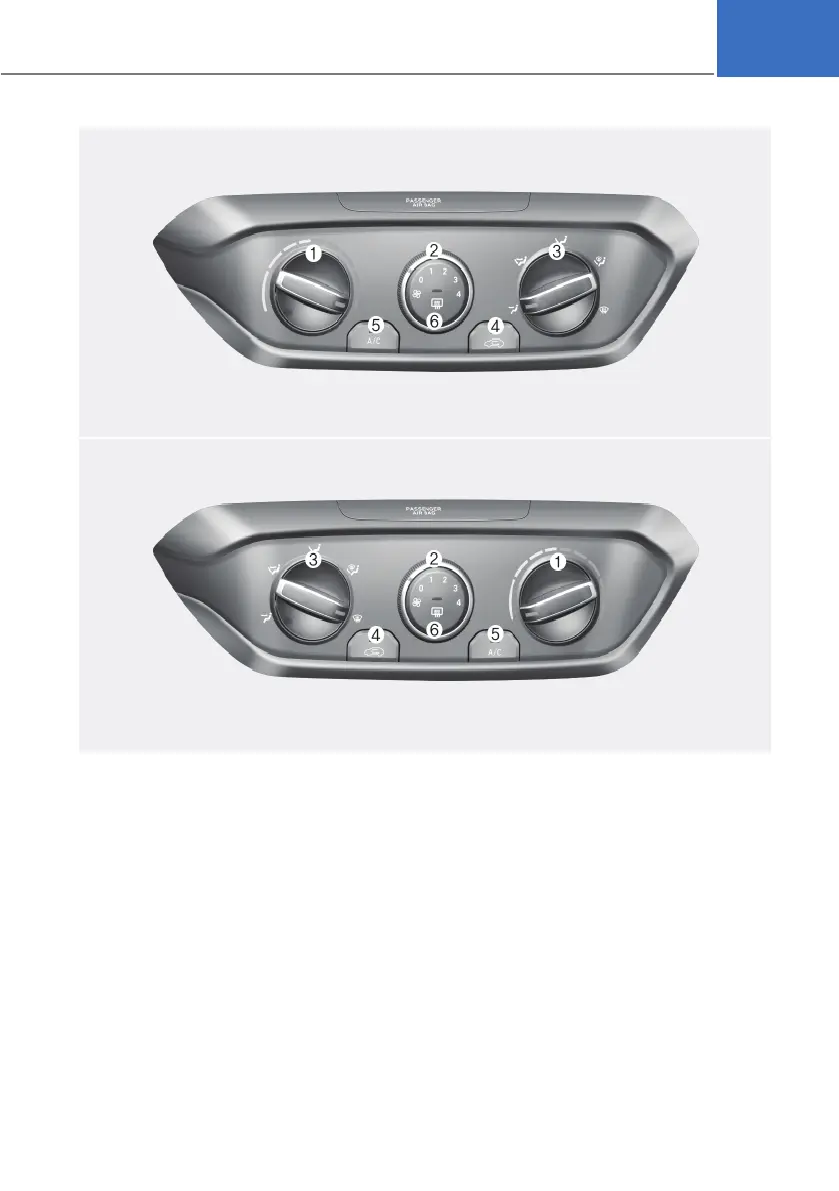

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)




Right Hand Drive
Right Hand Drive




Left Hand Drive
Left Hand Drive
OBC3050100/OBC3050100R
OBC3050100/OBC3050100R
1. Temperature control knob
2. Fan speed control knob
3. Mode selection knob
4. Air intake control button (recirculated air position or outside (fresh) air position)
5. A/C (Air conditioning) button (if equipped)
6. Rear window defroster button (if equipped)
