Hyundai BC3 - Engine Compartment

9-3
09
ENGINE COMPARTMENT

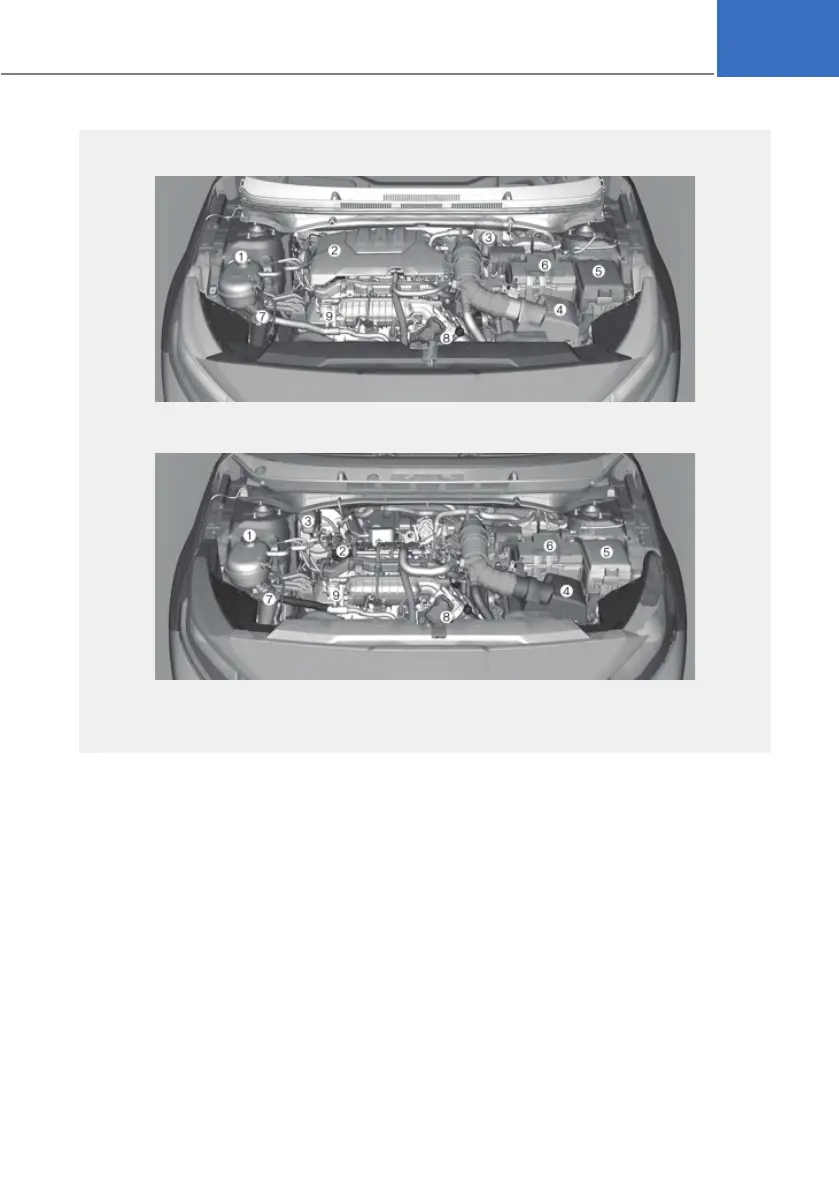

The actual engine room in the vehicle may differ from the illustration.
OBC3090001/OBC3090001R
OBC3090001/OBC3090001R




Smartstream G 1.0 T-GDi/Smartstream G1.0 T-GDi (48V) MHEV
Smartstream G 1.0 T-GDi/Smartstream G1.0 T-GDi (48V) MHEV
- Left-hand drive
- Left-hand drive
- Right-hand drive
- Right-hand drive
1. Engine coolant reservoir
2. Engine oil ſ ller cap
3. Brake/clutch* ƀ uid reservoir
4. Air cleaner
5. Fuse box
6. Battery
7. Windshield washer ƀ uid reservoir
8. Radiator cap
9. Engine oil dipstick
* : if equipped
