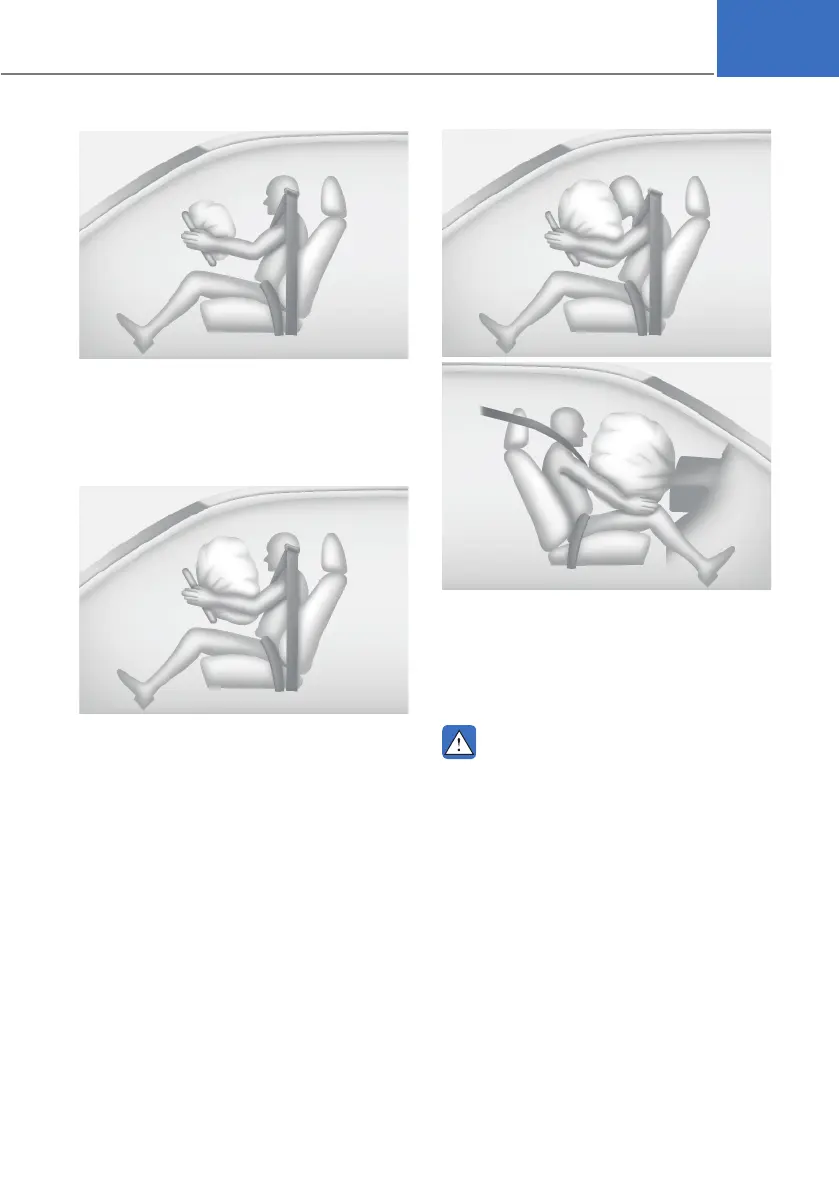

Driver's front air bag (1)
Driver's front air bag (1)
When the SRSCM detects a sufficiently
severe impact to the front of the vehicle,
it will automatically deploy the front air
bags.
ODN8039078L
Driver's front air bag (2)
Driver's front air bag (2)
Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of
the air bags. Further opening of the
covers allows full inflation of the air
bags.
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
motion, reducing the risk of head and
chest injury.
ODN8039079L
Driver's front air bag (3)
Driver's front air bag (3)
ODN8039080L
Passenger’s front air bag
Passenger’s front air bag
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:
• Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.
• Do not install a container of liquid air
freshener near the instrument cluster
or on the instrument panel surface.
