Replacing the Wiper Blades
To replace the wiper blades, raise the
wiper to the vertical.

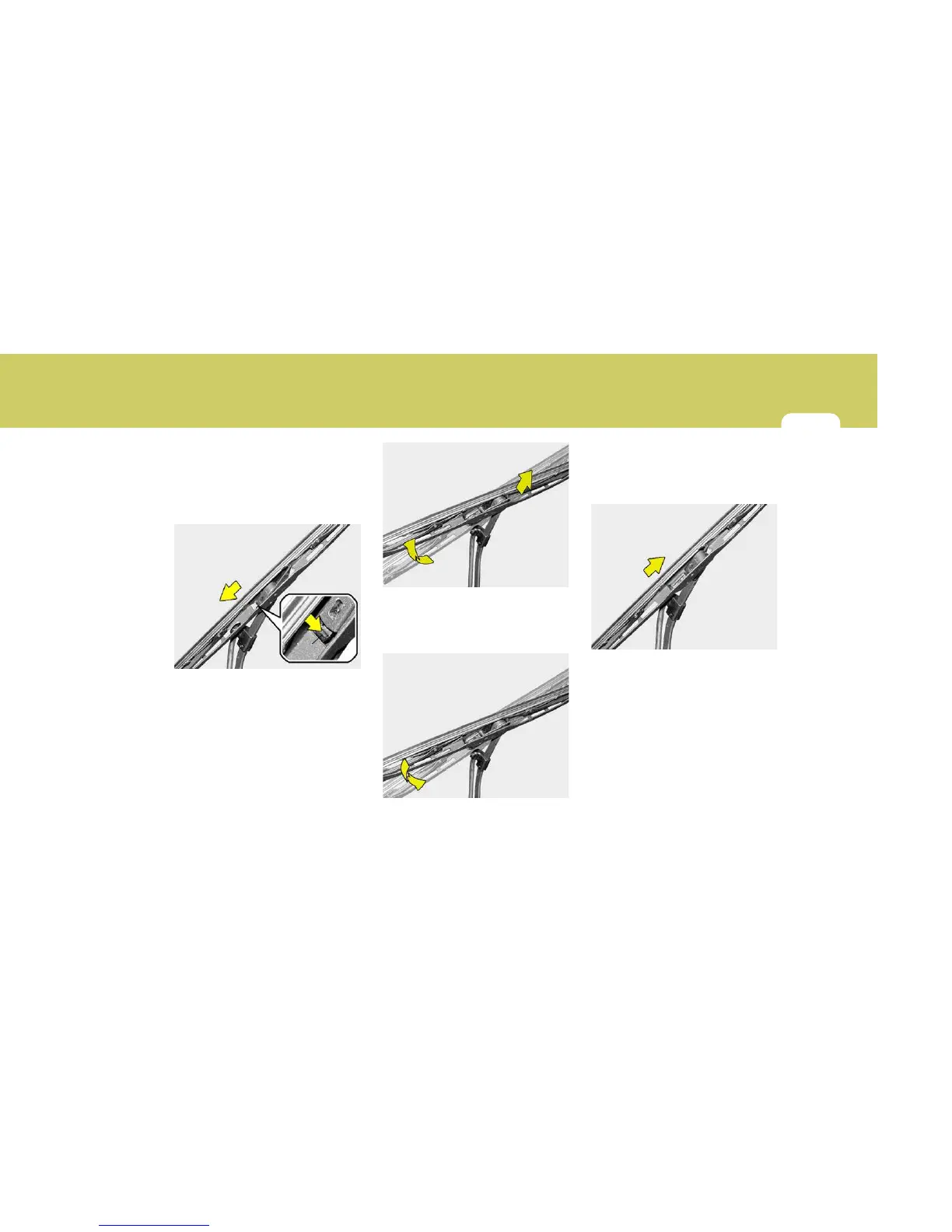

To remove the wiper blade
1. Push down the wiper blade with the
locking clip (1) pressed to detach it
from the wiper arm.
HHR5048
(1)
2. Raise the wiper blade lightly and
pull up it.
HHR5049
To install the wiper blade
HHR5050
1. Put a new wiper blade onto the
wiper arm and lower the wiper blade
at the level of the wiper arm as
shown in the drawing.
2. Pull up the wiper blade until you
hear an audible "click" to engage in
the end of the wiper arm.
NOTE:
Do not allow the wiper arm to fall
against the windshield.
HHR5051
