OWNER MAINTENANCE
27
SG170A1-E

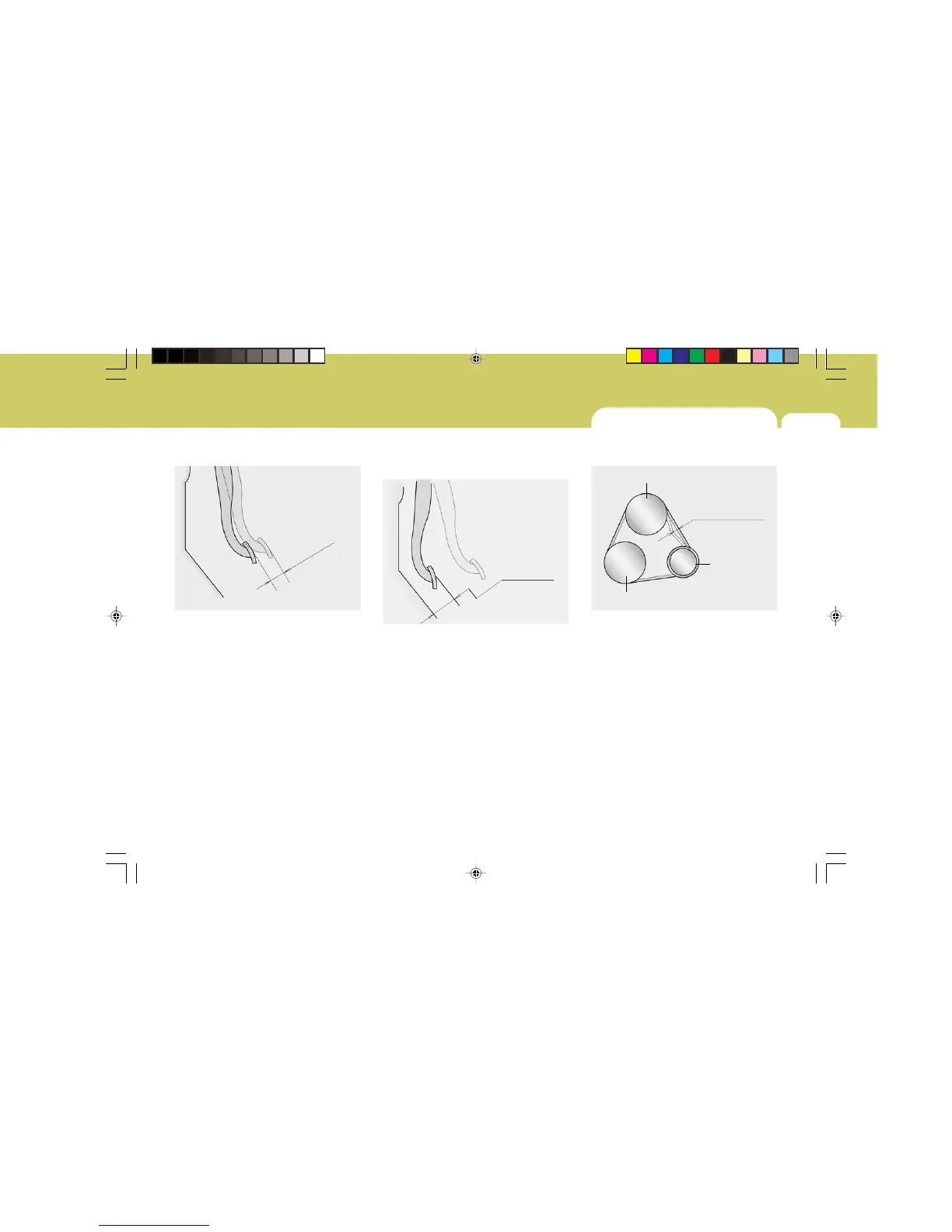

Brake Pedal
The brake pedal freeplay should be
checked with the engine turned off.
The pedal to floor clearance should be
checked with the engine running and a
load of 490 N applied to the pedal. If
either value is incorrect, the neces-
sary adjustment should be performed
by a Hyundai authorised repairer. Pedal
to floor clearance: 1.97 in. (50 mm)
HXGS508
0.12 ~ 0.31 in.
(3 ~ 8 mm)
SG190A1-E
Petrol Engine
The various engine drive belts must be
checked for condition, tension and free-
dom from damage and excessive wear.
The tension of a new belt must be
checked after thirty minutes running
following fitment of the new belt to
allow for the initial belt stretch.
CHECKING DRIVE BELTS
Water Pump Pulley
Alternator
Pulley
Crankshaft Pulley
0.2~0.24 in.
(5.1~6 mm)
HTB186
G180A01A-GAT
CHECKING BRAKE PEDAL
CLEARANCE
45.1 mm
(1.78 in.)
G180A01L
You need a helper to check the brake
pedal clearance. With the engine run-
ning, have your helper press down on
the brake pedal several times and then
hold it down with a force of about 490N
(50 kg, 110 lbs). The brake pedal
clearance is the distance from the top
surface of the brake pedal to the as-
phalt sheeting under the floor mat. If
the brake pedal clearance is not within
the limits specified in the illustration,
have it inspected by your Hyundai
dealer and adjusted or repaired if nec-
essary.
