6
OWNER MAINTENANCE
35

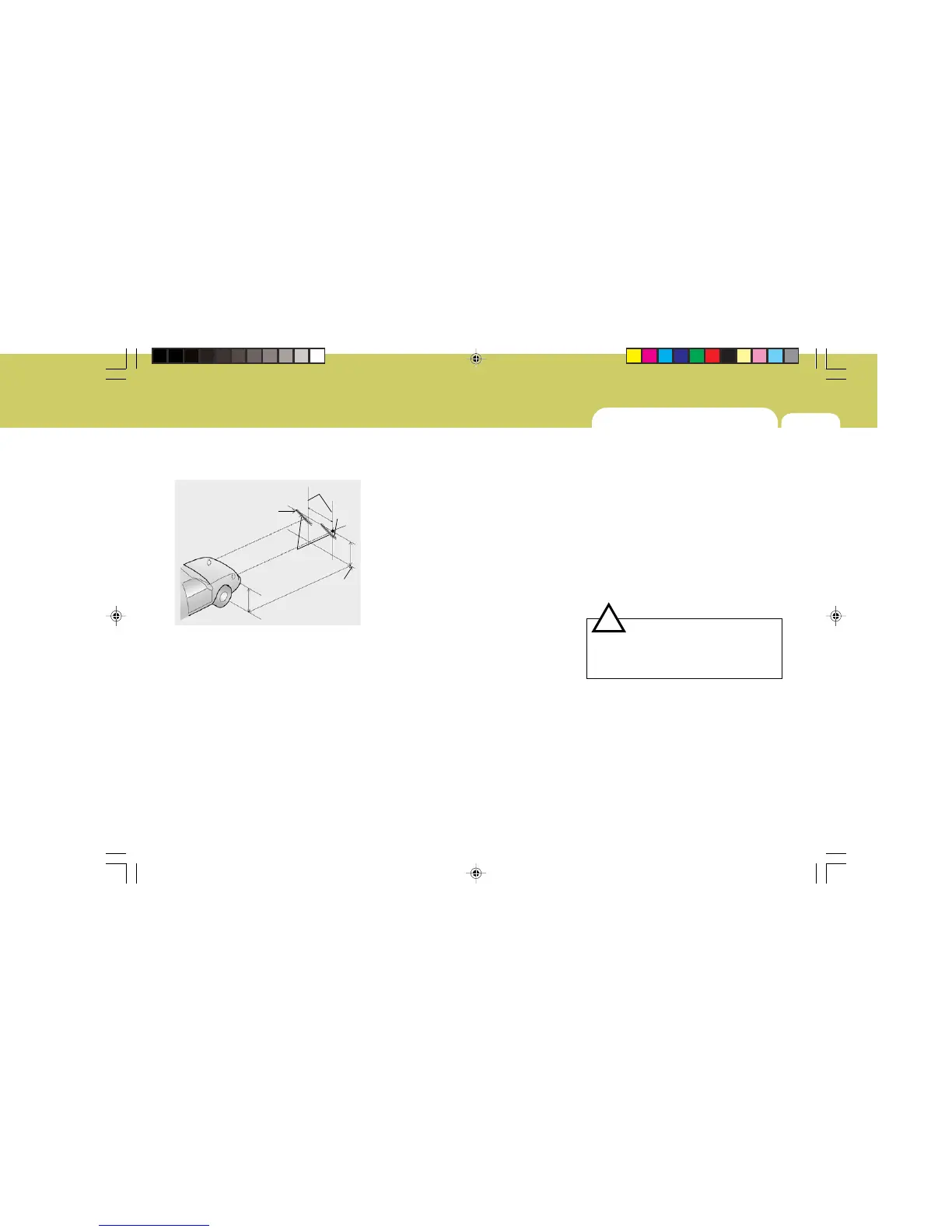

Specifications:
"H"
Horizontal centre line of headlights
from ground.
: 26.5 in.(675 mm)
"W"
Distance between each headlight cen-
tre.
: 46.3 in. (1,177 mm)
"L"
Distance between the headlights and
the wall that the lights are tested
against.
: 118 in. (3,000 mm).
G290B02FC-EAT
Adjustment After Headlight As-
sembly Replacement
If the vehicle has had front body repair
and the headlight assembly has been
replaced, the headlight aiming should
be checked using the aiming screen
as shown in the illustration. Turn on
the headlight switch. (Low Beam Posi-
tion)
1. Adjust headlights so that main axis
of light is parallel to the centre line
of the body and is aligned with point
"P" shown in the illustration.
2. Dotted lines in the illustration show
the centre of the headlights.
G290B01L-D
L
W
H
H
Cut-off line
"P"
30mm
(1.18 in.)
Vertical line
Horizontal line
Ground
line
REPLACING LIGHT BULBS
SG250A2-E
In the event of bulb failure being expe-
rienced, ensure that the relative light-
ing circuit is turned off prior to attempt-
ing to replace the bulb. The illustra-
tions on the following page will assist
in locating and removing the various
bulbs. Ensure that the replacement
bulb has the same cap configuration
and wattage as the original.
See page 6-37 for the wattage
descriptions.
!
CAUTION:
Keep the lamps out of contact with
petroleum products, such as oil,
petrol, etc.
fcuk-6.p65 12/27/2006, 10:16 AM35
