I-Semble REVISED VERTICAL MURPHY BED - Install the Slats

14
Install the Slats
1. Start at the head of the bed, nearest the pivot points
on the Left/Right Sides of the Frame (A).
2. Take two Slats (O) and place a Slat Cap (P) on one
end of each. Connect them by inserting the other
ends in a Double Slat Cap (Q).
3. Install the slats on the frame by inserting the pins
on the Slat Caps (P) and Double Slat Cap (Q) into the
corresponding mounting holes in the frame. You might
need to bend the Slats slightly and use a rubber mallet
to tap the Slat Caps and Double Slat Cap into place.

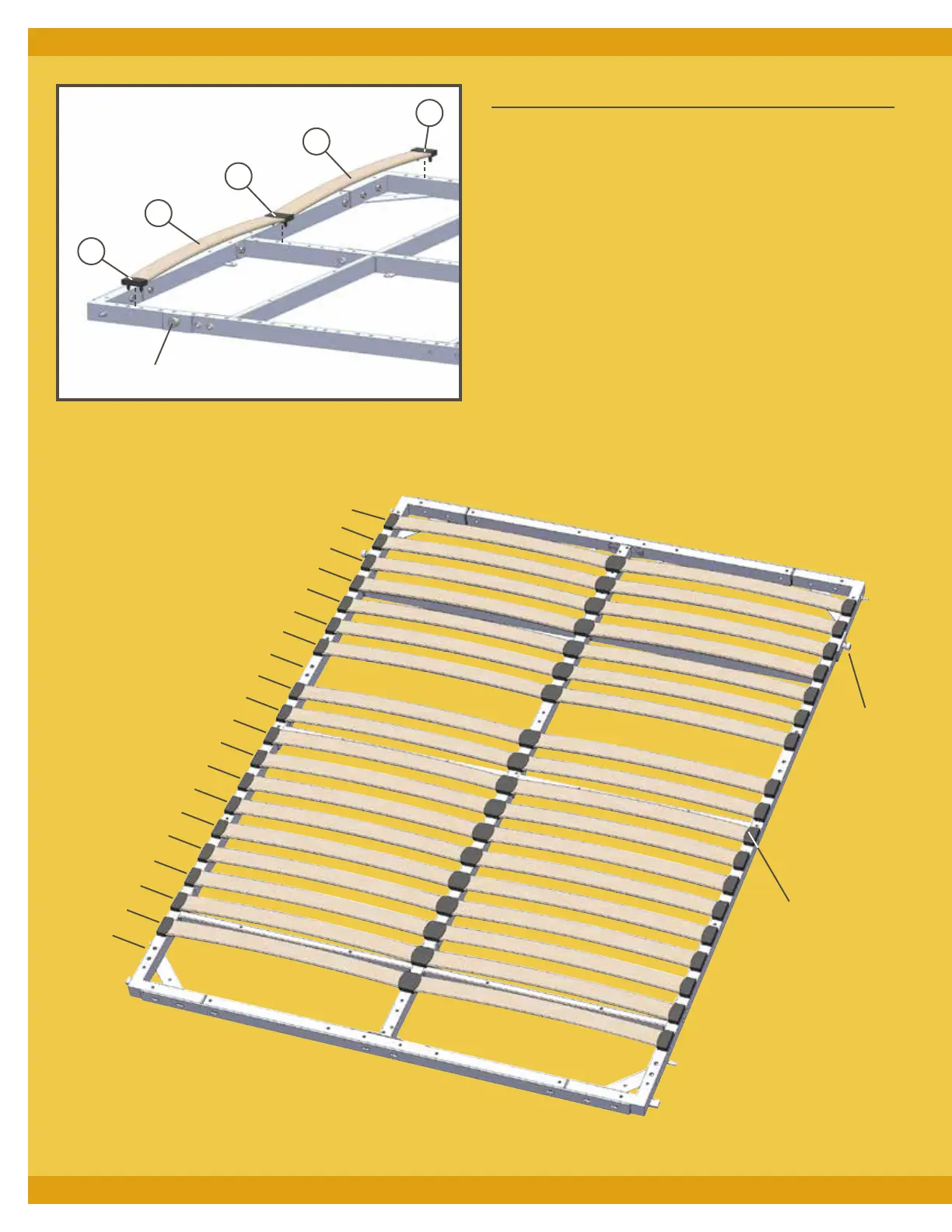

Fig. 8.
4. Repeat to install all Slats, except those in Rows 8
and 20 in Twin and Full beds and Rows 8, 11 and
20 in Queen beds. Fig. 9. You will install theses
Slats later.
Fig. 8
Fig. 9
1
2
3
4
5
6
7
Row 8
9
10
11
12
13
14
15
16
17
18
19
Row 20
Pivot
Point
Row 11:
Do NOT place this
row for Queen
Size Beds (only)
Q
O
P
O
P
Pivot Point
