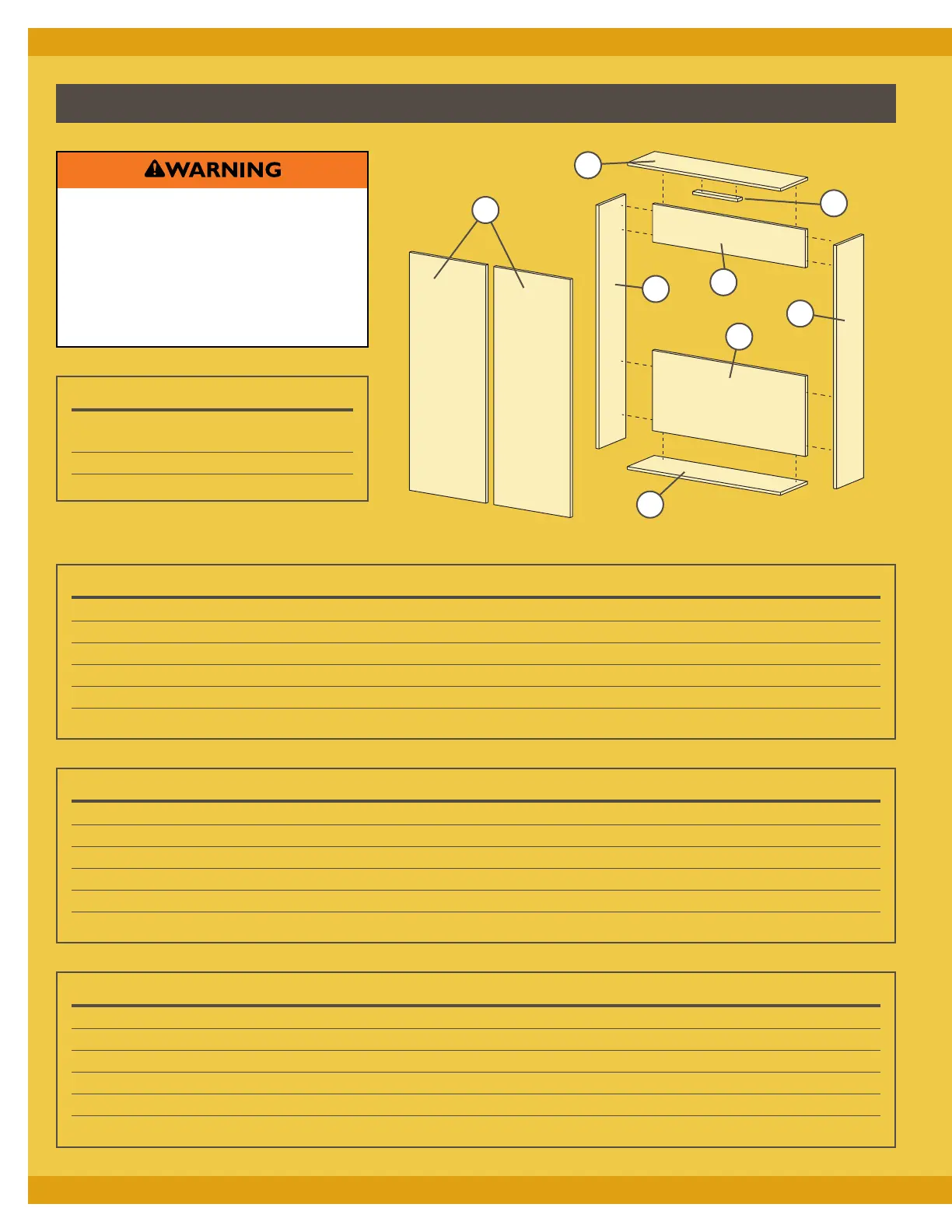

I-Semble REVISED VERTICAL MURPHY BED - Cabinet Parts (Not Included)

6
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 17" x 79
1
⁄8" 2
2 Top and Bottom 3/4" x 17" x 41
1
⁄4" 2
3 Upper Headboard 3/4" x 13" x 41
1
⁄4" 1
4 Lower Headboard 3/4" x 26" x 41
1
⁄4" 1
5 Door Panels 3/4" x 40
5
⁄8" x 77
5
⁄16" 1
6 Permanent Stop 5/8" x 3" x 18" 1
TWIN BED (Mattress Size 39" X 75" X 10")
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 17" x 85
5
⁄8" 2
2 Top and Bottom 3/4" x 17" x 63
1
⁄4" 2
3 Upper Headboard 3/4" x 13" x 63
1
⁄4" 1
4 Lower Headboard 3/4" x 26" x 63
1
⁄4" 1
5 Door Panels 3/4" x 31
5
⁄16" x 83
13
⁄16" 2
6 Permanent Stop 5/8" x 3" x 18" 1
QUEEN BED (Mattress Size 60" X 80" X 10")
Dimensions (T x W x L) Quantity
1 Sides 3/4" x 17" x 79
1
⁄8" 2
2 Top and Bottom 3/4" x 17" x 57
1
⁄4" 2
3 Upper Headboard 3/4" x 13" x 57
1
⁄4" 1
4 Lower Headboard 3/4" x 26" x 57
1
⁄4" 1
5 Door Panels 3/4" x 28
5
⁄16" x 77
5
⁄16" 2
6 Permanent Stop 5/8" x 3" x 18" 1
FULL BED (Mattress Size 54" X 75" X 10")
Width Height Depth
Twin 41
1
⁄4" 77
5
⁄8" 15
1
⁄2"
Full 57
1
⁄4" 77
5
⁄8" 15
1
⁄2"
Queen 63
1
⁄4" 84
1
⁄8" 15
1
⁄2"
MINIMUM INTERIOR OPENING SIZES
1
1
3
4
2
6
2
> Do NOT construct the cabinet
from MDF, particleboard or
melamine-coated MDF.
> Do NOT modify design to remove
Upper and Lower Headboards (3
and 4) These parts serve an
important safety function.
CABINET PARTS (NOT INCLUDED)
5
