I-Semble REVISED VERTICAL MURPHY BED - Parts List

4
Twin Qty. Full Qty. Queen Qty.
A Left and Right Frame Sides (with Pivot Points) 2 2 2
B Upper and Lower Half Frame Supports 4 4 4
C Middle Frame Supports 2 2 2
D Long Center Frame Support 1 1 1
E Upper and Lower Frame Supports 2 2 2
F Flat Bars 2 2 2
G1 Pistons 2 2 2
H Mattress Supports 1 2 2
I Mounting Plate (Left and Right) 2 2 2
J Saddle Locking Plates 2 2 2
L Door Brackets 6 12 12
M Legs (Left and Right) 2 2 2
N Leg Tube 1 1 1
O Slats 40 40 42
P Slat Caps 40 40 42
Q Double Slat Caps 20 20 21
R Wrench 1 1 1

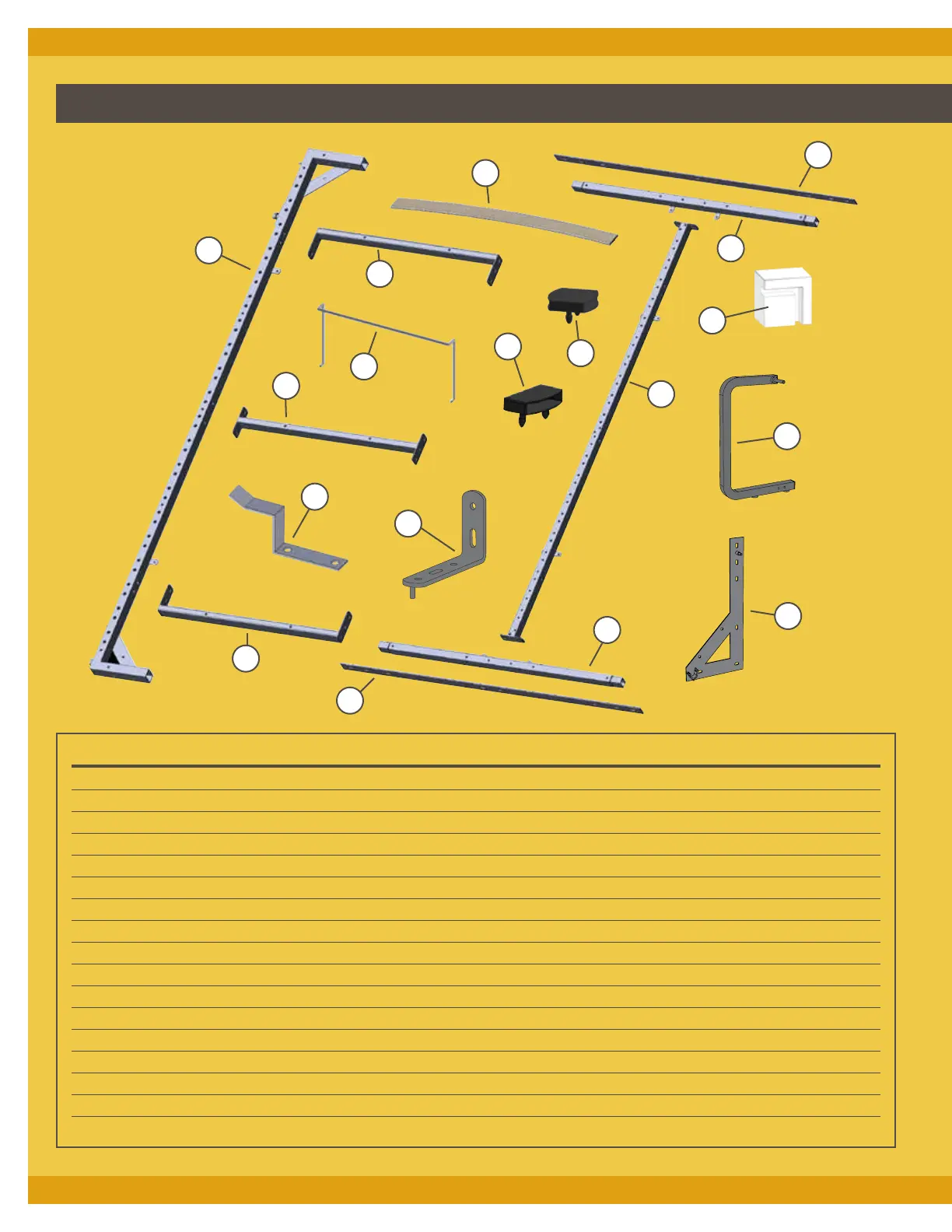

PARTS LIST
O
GG
M
I
E
F
B
L
HH
P
Q
B
H
C
D
A
F
E
