IACER SRL Page 11 di 22 MNPG80-01 of 06/05/2016

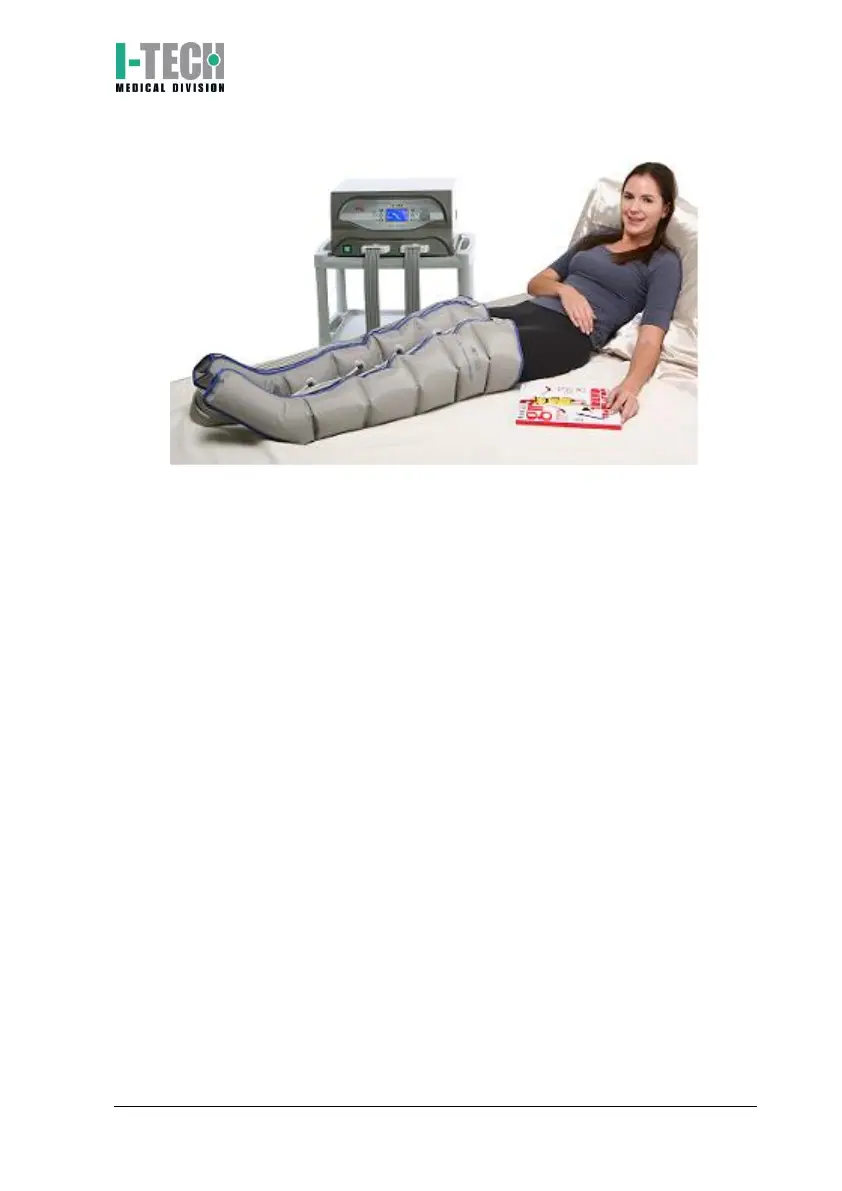

ii) Insert the pressure plantars under the feet;
iii) When wearing the leggings pay attention to position
the tubes connection cables in the internal side of
each legging;
iv) Connect 6 tubes to the 6 plugs positioned on each
legging, paying attention to connect the longer tube to
the higher position connector of legging (thigh): both
the longer tube and the higher position connector
have a darker color;
v) After connecting the tubes to the relatives leggings,
connect the tubes to one of the two air discharge
outputs.
b) Abdominal band use
i) Wear the band and connect the tubes to the band
plugs, paying attention to connect the longer tube to
the higher position connector on abdominal band;
ii) After connecting the tubes to the band, connect the
tubes to one of the two air discharge outputs.
