IBASE Technology MB820 - JP1: RS232;422;485 (COM2) Selection; JP2: COM1 RS232 +5 V;+12 V Power Setting; JP3: COM2 RS232 +5 V;+12 V Power Setting

INSTALLATIONS
8 MB820 User’s Manual

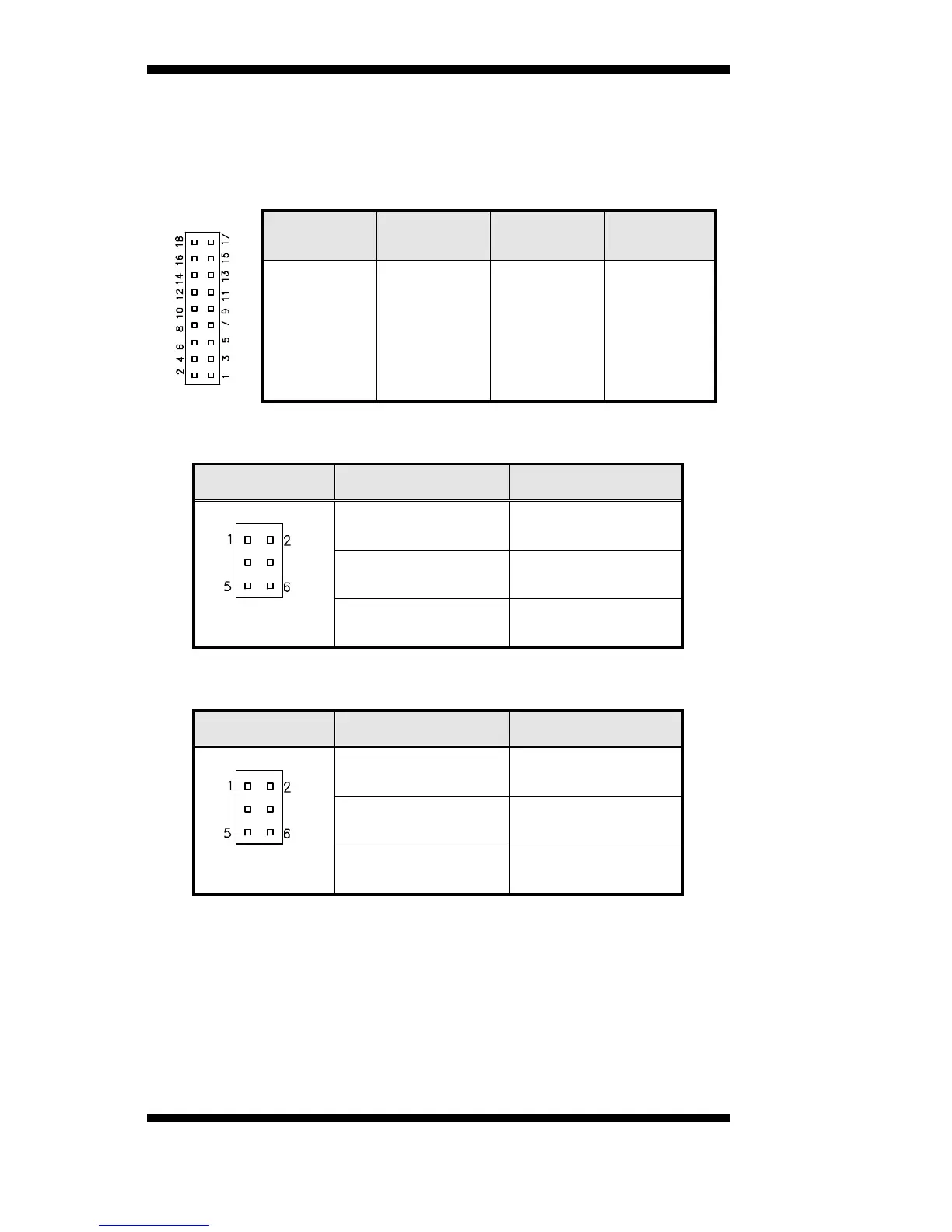

JP1: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
J3, COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
Short:
1-2
9-11
10-12
15-17
16-18
Short:
3-4
7-9
8-10
13-15
14-16
Short:
5-6
7-9
8-10
13-15
14-16
JP2: COM1 RS232 +5V/+12V Power Setting
JP2 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Normal
Pin 5-6
Short/Closed
+5V
JP3: COM2 RS232 +5V/+12V Power Setting
JP3 Setting Function
Pin 1-2
Short/Closed
+12V
Pin 3-4
Short/Closed
Normal
Pin 5-6
Short/Closed
+5V
