IBC TopFix 200 - Roof Hook Types

15
Version 17.01, as of: 27-Jun-2017
4.3 Roof hook types
Important!
The specifications of the general building approval Z-14.4.-661 for steel roof hooks and Z-14.4.-515 for
aluminum roof hooks have to be considered.
4.3.1 "Standard S+" roof hook
Generally the "Standard" S+" roof hook is used.
It is suitable for the most commonly used types of pantiles.
parameters
value
Material
Stainless steel 1.4301 S460
yield strength
f
y,k
= 460 N/mm²
Dimensions base plate (length / width / height)
135/ 70/ 4 mm
Dimensions hook (width / height)
30/ 6 mm
Drilling holes baseplate
∅ 9 mm
Drilling holes hook
slot ∅ 11 mm, L=30 mm
Hook distance from the base plate
45 mm
weight
0,830 kg
General construction approval
Z-14.4.-661
Maximum ch. load / roof hook [kN]
not specified
not specified
not specified
Accessories
flat head screw 6x100-A2 TX25
flat head screw 8x100-A2 TX40
flat head screw 8x140-A2 TX40
flat head screw ASD 8x240-A2 TX40
countersunk screw 8x280 TX40
flat head screw ASD 8x300-A2 TX40
countersunk screw 8x340 TX40
connection piece for roof hook profile M10
Figure 12: Parameters roof hook Standard S+

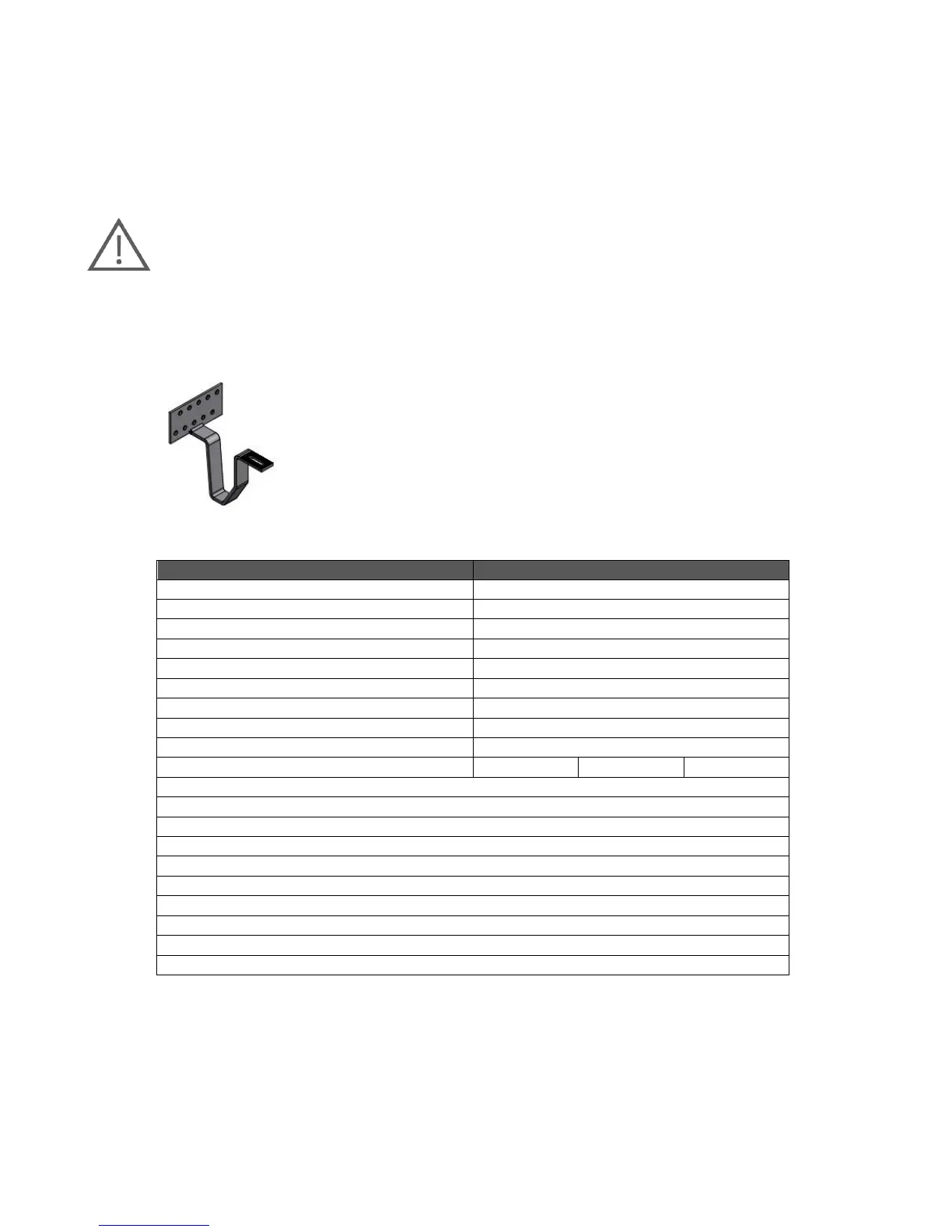

Figure 11: "Standard S+" roof hook
