Version 17.01, as of: 27-Jun-2017

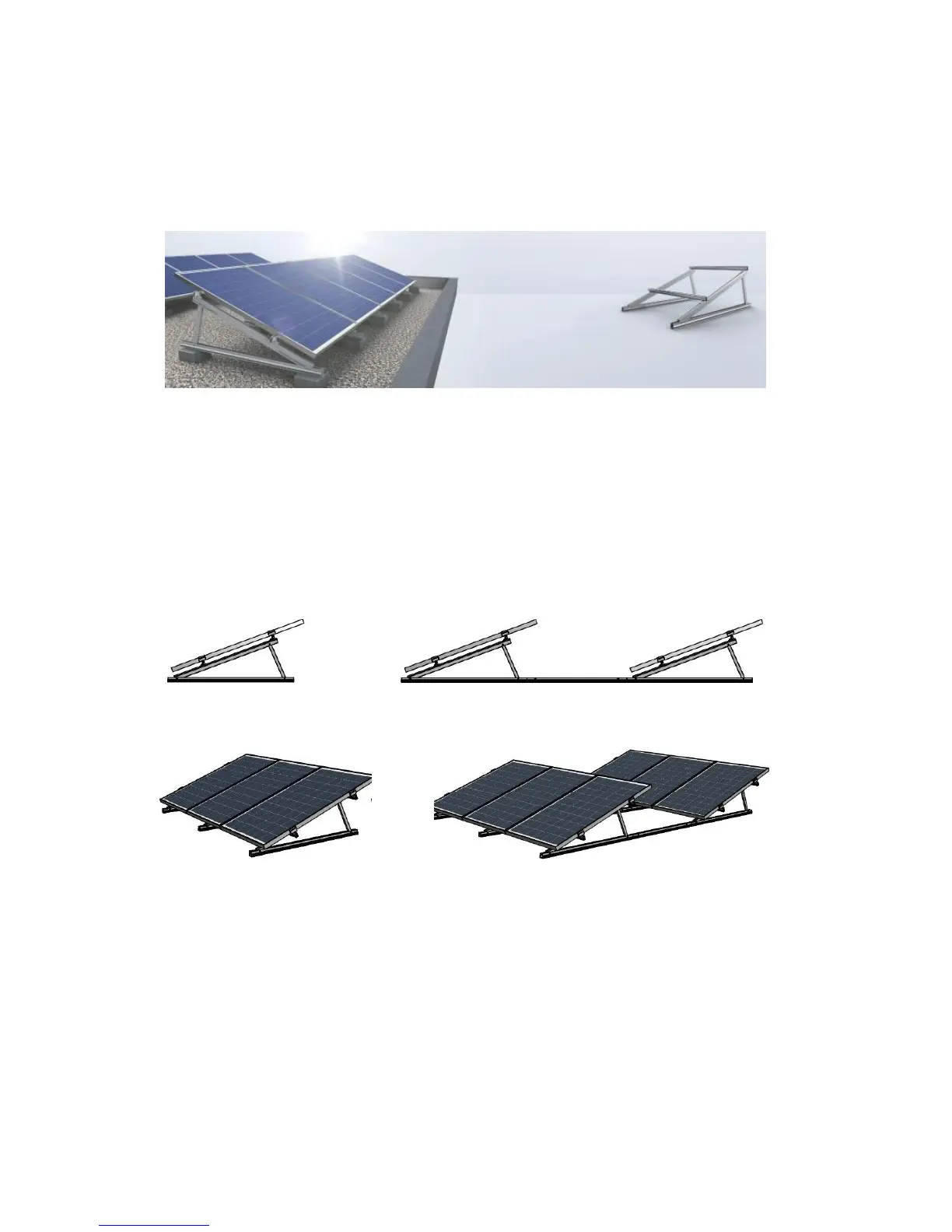

09. Delta support

Figure 100: Delta support

9.1 General information

Delta supports enable to use the IBC TopFix 200 mounting system as an elevated mounting system and

achieve optimum module inclination.

Delta supports are available with single as well as continuous base rails. Inclination angles between 10°

and 45° can be adjusted in 5° steps.

Figure 101: Delta support with single base rail

Figure 102: Delta support with continuous base rail
