IBC TopFix 200 User Manual

19
Version 17.01, as of: 27-Jun-2017

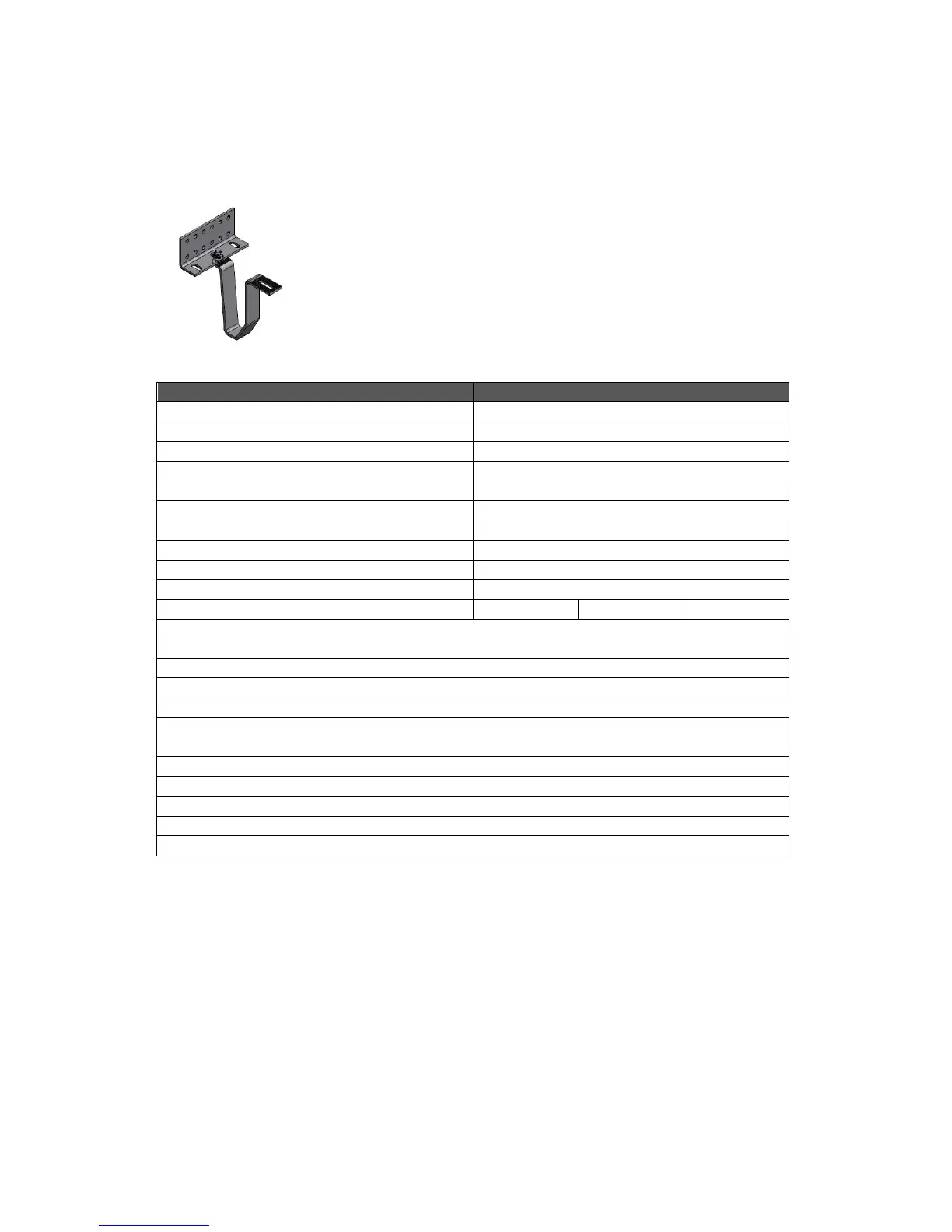

4.3.5 “Vario S+” roof hooks
For horizontal and vertical adjustability at the base plate.
parameters
value
Material
Stainless steel 1.4301 S460
yield strength
f
y,k
= 460 N/mm²
Dimensions base plate (length / width / height)
155/ 75/ 5 mm
Dimensions hook (width / height)
35/ 6 mm
Drilling holes baseplate
∅ 9 mm
Drilling holes hook
slot ∅ 11 mm, L=30 mm
Hook distance from the base plate
42 mm – 55 mm
Horizontal adjustment at the base plate
± 55,5 mm
weight
1,355 kg
General construction approval
Z-14.4.-661
Maximum ch. load / roof hook [kN]
not specified
not specified
not specified
Incl. 1x coach bolt M10x25 A2 / 70
Incl. 1x hexagon nut M10 A4 / 70 with locking teeth
Accessories
flat head screw 6x100-A2 TX25
flat head screw 8x100-A2 TX40
flat head screw 8x140-A2 TX40
flat head screw ASD 8x240-A2 TX40
countersunk screw 8x280 TX40
flat head screw ASD 8x300-A2 TX40
countersunk screw 8x340 TX40
connection piece for roof hook profile M10
Figure 20: parameters roof hook “Vario S+”
Figure 19: “Vario S+” roof hook
