IBC TopFix 200 User Manual

60
Version 17.01, as of: 27-Jun-2017
9.3 Connection to the roof
We offer the following connection types to connect Delta supports, depending on the available roof seal
and roof substructure:
 Fixation by hanger bolt
 Fixation by universal connector
 Fixation by additional weight (e.g. positioning walkways, etc.)
 Fixation by trapezoidal clamps (two-layer connection with TF27)
 Fixation by roof hooks (single or two-layer connection)

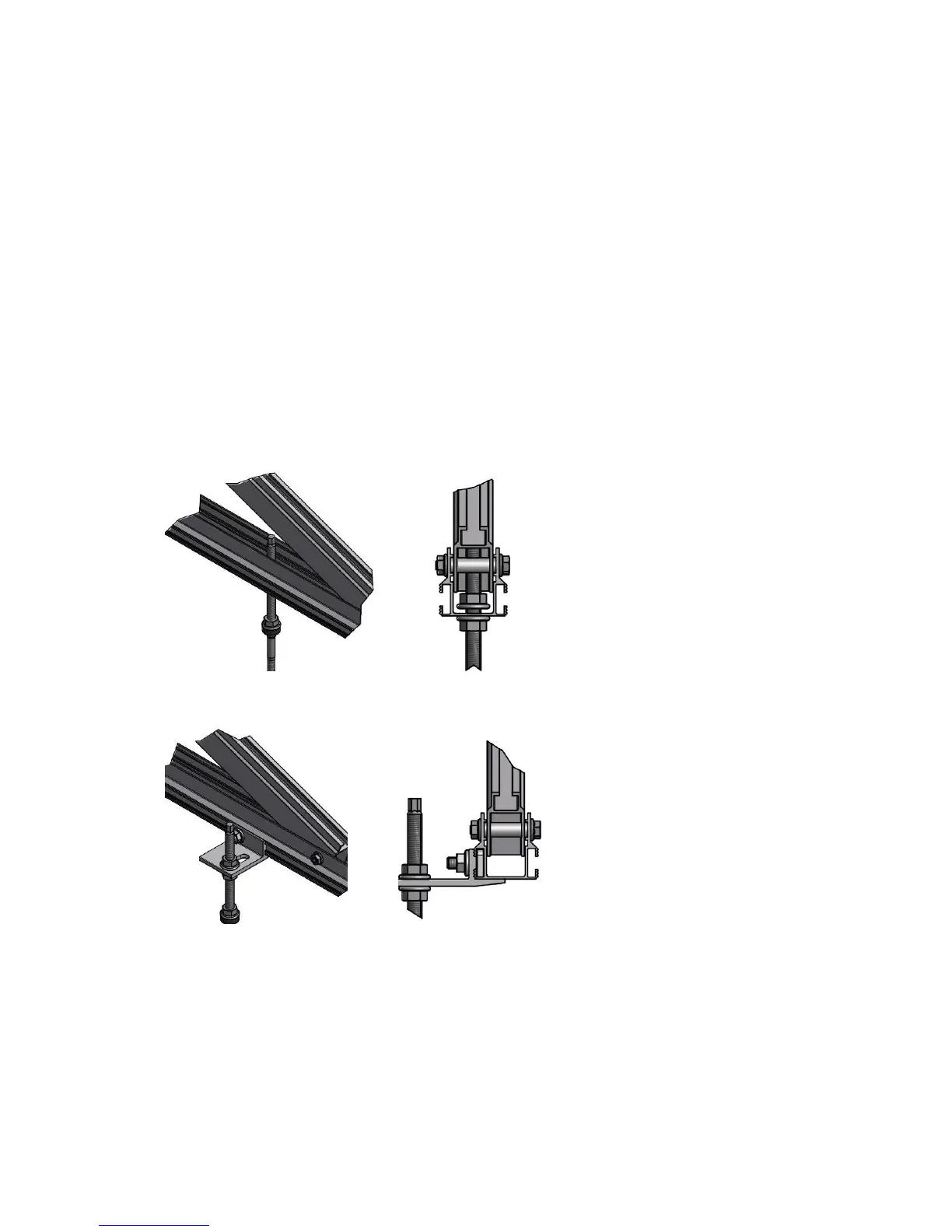

Figure 106: Fixation by hanger bolt
Figure 107: Fixation by universal connector
