IBC TopFix 200 User Manual

62
Version 17.01, as of: 27-Jun-2017
9.4 Mounting modules
Modules can be mounted either horizontally or vertically using Delta supports. Modules up to a module
size of 1.7 m can are suitable for vertical mounting.
 Vertical module – clamps on the long sides
In this case, Delta supports are connected using two carrier rails
(TF50+/TF50m/TF60). Modules are then mounted on said carrier
rails.
 Horizontal module – clamps on the short sides
In this case, Delta supports are connected using two carrier rails
(TF50/TF50m/TF60). Modules are then mounted on said carrier rails.
Please ensure that the modules have been approved for clamping on
the short sides.
 Horizontal module – clamps on the long sides
In this assembly process, modules are mounted directly on the Delta
support. In this case, no further carrier rails are used. However, two
Delta supports are required per module.

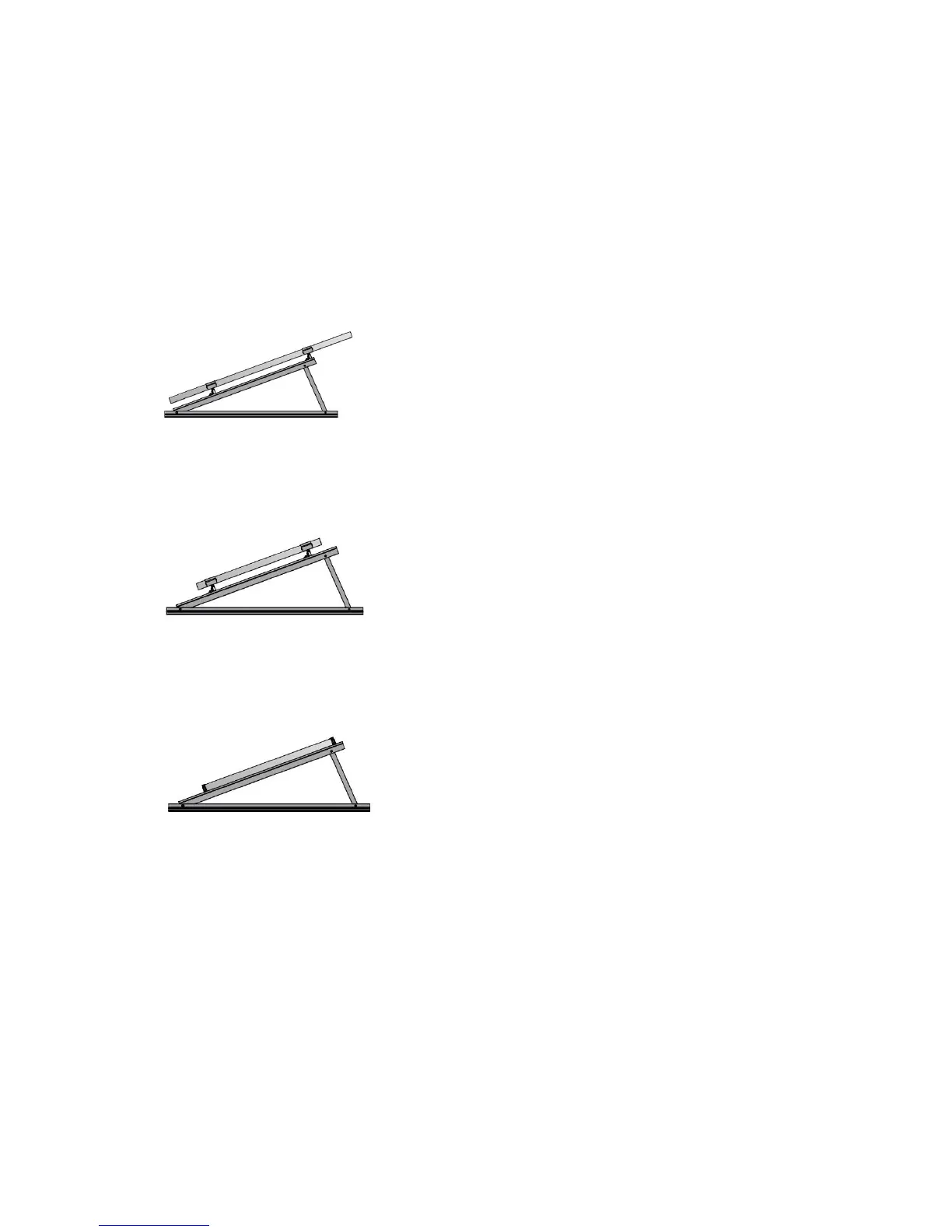

Figure 109: Vertically mounted modules with module carrier rail
Figure 110: Horizontally mounted modules with module carrier profiles
Figure 111: Horizontally mounted modules without module carrier rail
