ibis Mojo HD 3 User Manual

4 5

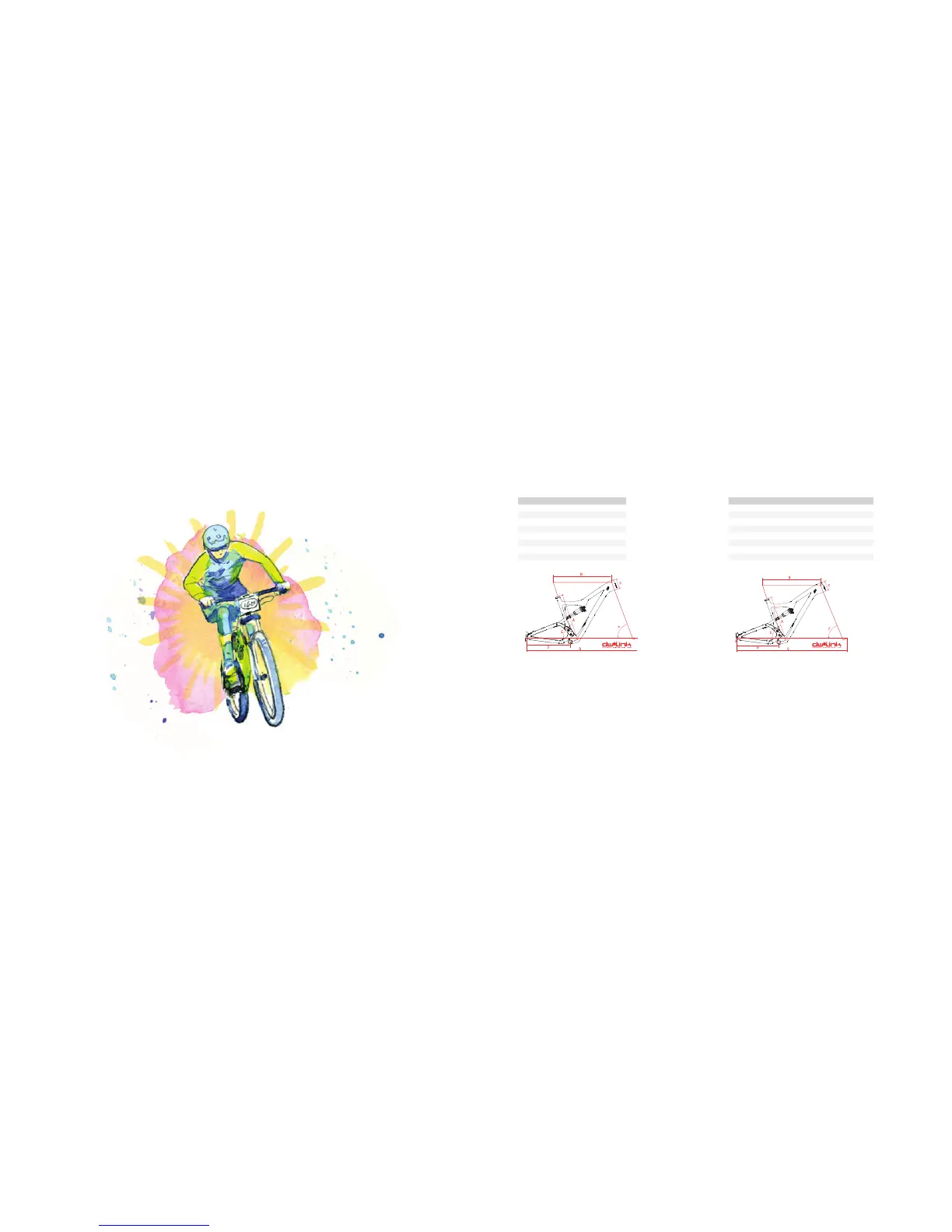

FRAME GEOMETRY CHART FRAME GEOMETRY CHART
Size Medium Large
Seattube A
16.5” 18.5”
Toptube B
587mm 607mm
Headtube C
94mm 100mm
Chainstay D
17.4” 17.4”
Seat Angle E
72.2° 72.2°
Head Angle F
69.2° 69.2°
Wheelbase G
1105mm 1125mm
Stack
620mm 625mm
Reach
390mm 406 mm
Size Medium Large X-Large
Seattube A
16.5” 18.5” 20.5”
Toptube B
600mm 619mm 640mm
Headtube C
93mm 102mm 107mm
Chainstay D
17.4” 17.4” 17.4”
Seat Angle E
73° 73° 73°
Head Angle F
67.5° 67.5° 67.5°
Wheelbase G
1140mm 1167mm 1187mm
Stack
619mm 625mm 632mm
Reach
411mm 428mm 448mm
New Ripley with 130mm Fork Ripley
LS
• 29” wheels
• 120mm rear wheel dw-link travel
• Approved for 120-140mm forks, 51mm rake is STRONGLY recommended
• 69.2º head angle with a 130mm fork
• Internal cable routing using our exible and easy to setup port system
• Chainstay length: 17.4”
• Threaded bottom bracket
• Shimano side swing front derailleur compatible
• Tapered headtube and steerer: ZS44 upper, EC49 lower
• 12 x 142mm Shimano rear through axle
• 160mm post mount left dropout, carbon ber
• 29” wheels
• 120mm rear wheel dw-link travel
• Approved for 120-140mm forks, 51mm rake is STRONGLY recommended
• 67.5º head angle with a 130mm fork
• Internal cable routing using our exible and easy to setup port system
• Chainstay length: 17.4”
• Threaded bottom bracket
• Shimano side swing front derailleur compatible
• Tapered headtube and steerer: ZS44 upper, EC49 lower
• 12 x 142mm Shimano rear through axle
• 160mm post mount left dropout, carbon ber

ibis Mojo HD 3 Specifications

General

Brand	ibis
Model	Mojo HD 3
Category	Bicycle
Language	English
