IBM 1500VA LCD 2U Rack Uninterruptible Power Supply for IBM System x 10

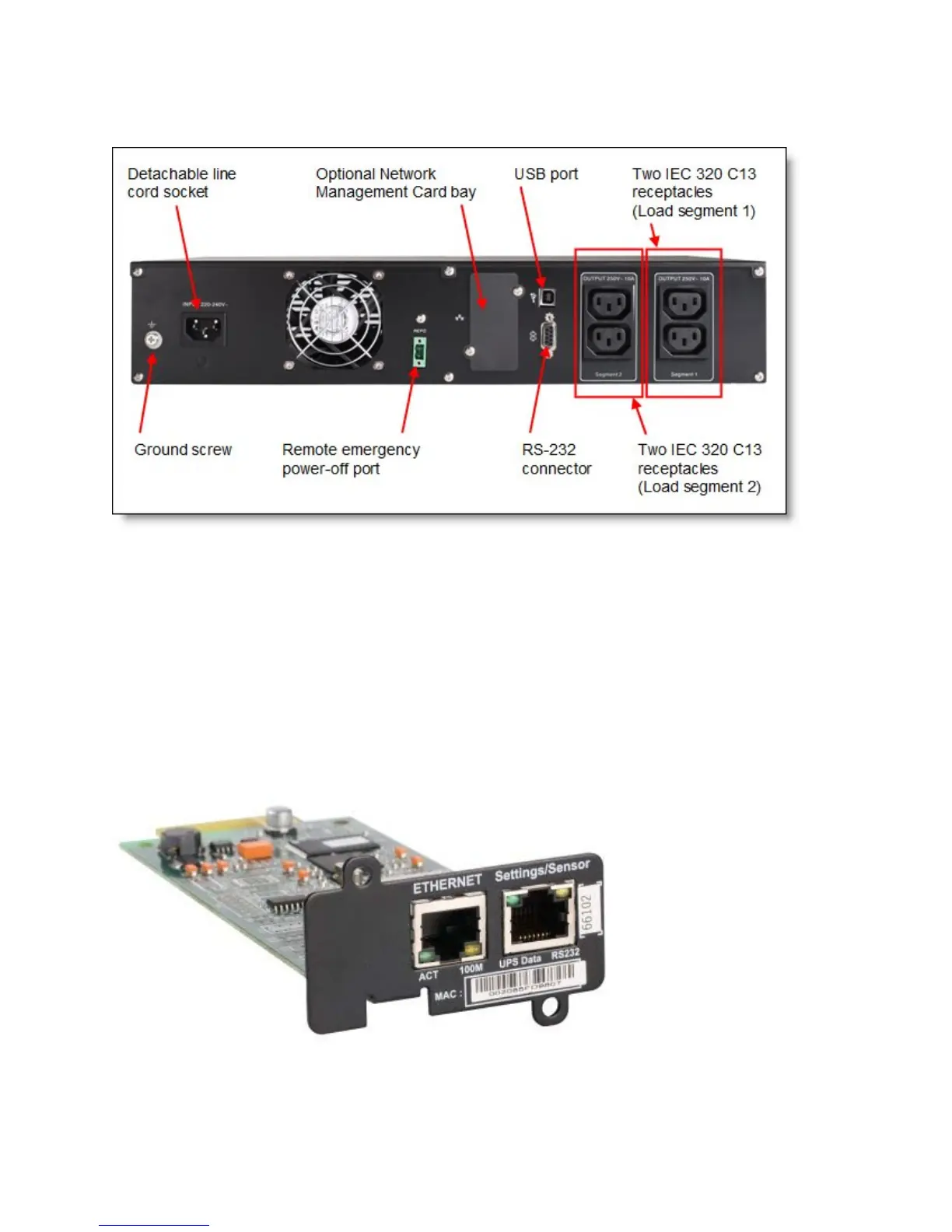

Figure 4 shows the rear panel of the IBM 1500VA LCD 2U Rack UPS (230V), 5395-1KX.
Figure 4. Rear panel of the IBM 1500VA LCD 2U Rack UPS (230V), 5395-1KX
The 5395-1AX and 5395-1KX come equipped with intelligent load segments. These individual receptacle
groups can be programmed and controlled allowing mission critical devices to be prioritized during
shutdown to preserve battery run time.
Network Management Card
The IBM 1500VA LCD 2U Rack UPS also comes equipped with a communication bay for the installation
of an optional Network Management Card (46M4110). The Network Management Card provides
convenient over the network UPS remote monitoring and management through a standard web browser.
Figure 5 shows the
IBM LCD UPS Network Management Card (NMC).
Figure 5. IBM LCD UPS Network Management Card (NMC)

IBM 1500VA Specifications

General

Brand	IBM
Model	1500VA
Category	UPS
Language	English
