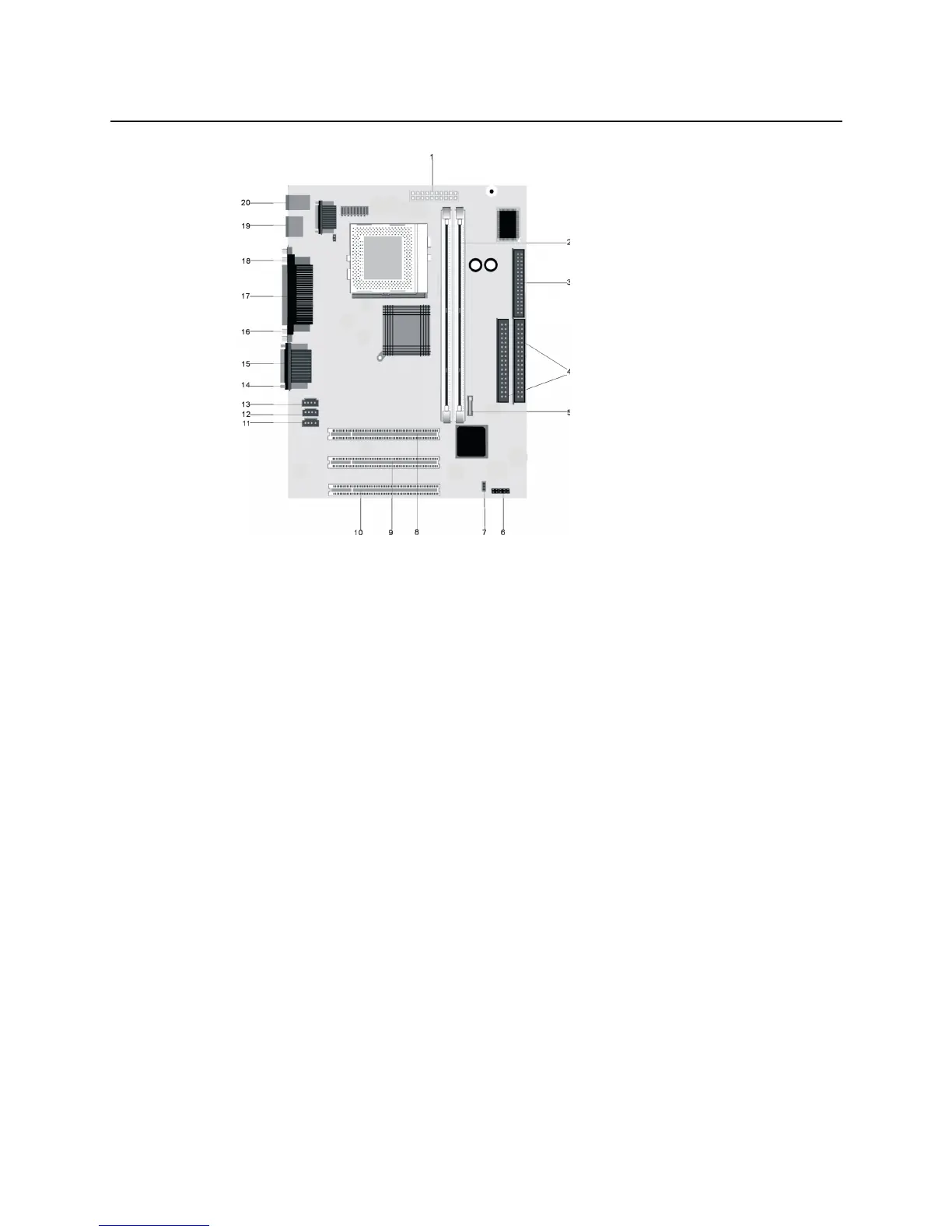

Layout of System Board of Machine Types 6266, 6270, 6276, 6279, 6280 and 6286
Jumpers and Connectors Locations of System Board of Machine Types
6266, 6270, 6276, 6279, 6280 and 6286
1. Power connector (JWR1) 11. Modem In connector (J7)
2. DIMM 12. Aux Line In connector (J6)
3. Floppy Disk connector
(FDD1)
13 CD In connector (J5)
4. Hard Disk Connector (IDE1
& IDE2)
14. Audio Port connector
5. Battery 15. Serial Port connector 1
(COM A)
6. Case connector (JFP2) 16. VGA Port connector
7. Clear CMOS jumper
(JBAT)
17.Parallel Port connector
(LPT1)
8. PCI SLOT 1 18. Serial Port connector 2 (COM B)
9. PCI SLOT 2 19 USB
10. PCI SLOT 3 20. Mouse and Keyboard connector (JKBMS1)
