Locating the connectors on the rear of your computer

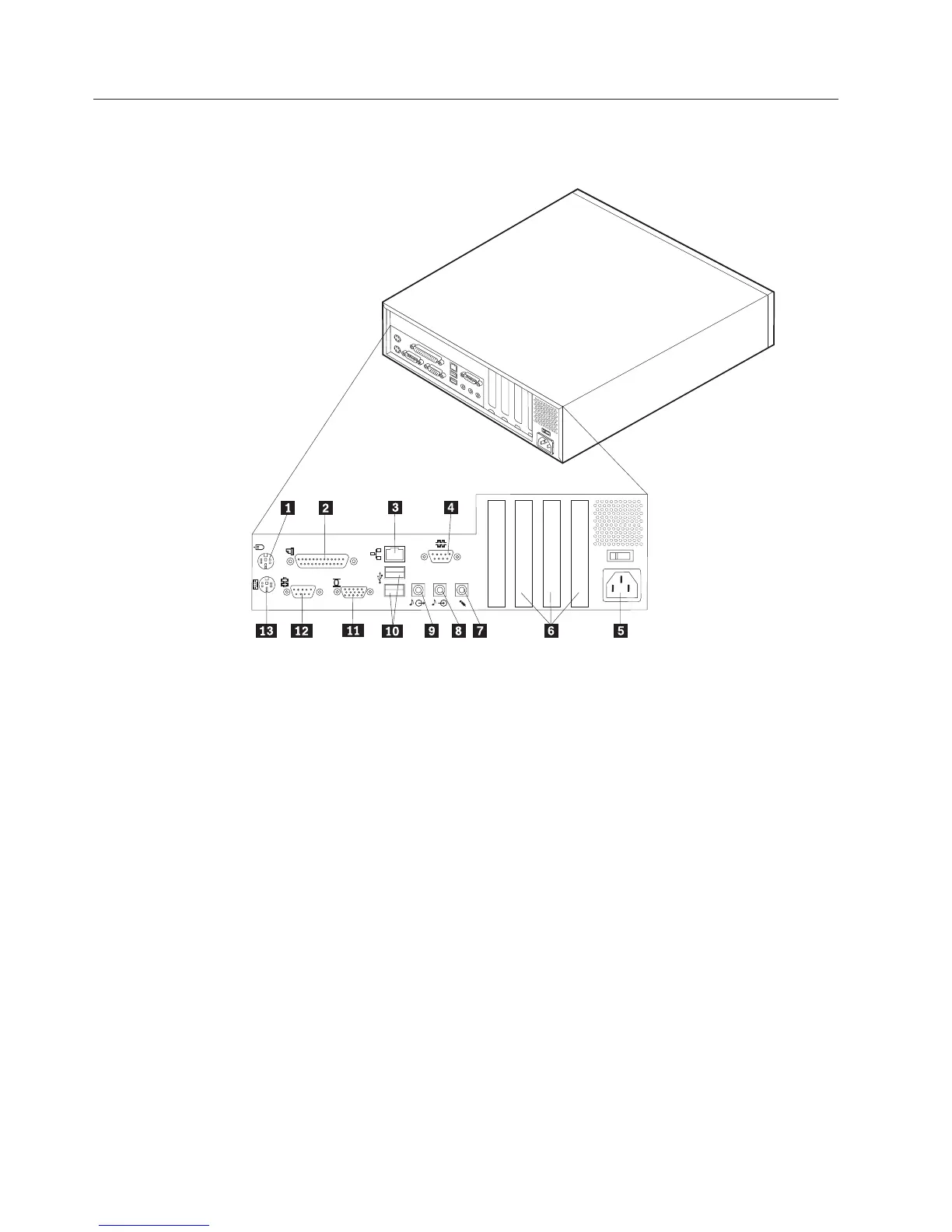

The following illustration shows the location of the connectors on the rear of the
small desktop model computer.
1Mouse connector 8 Audio line in connector
2Parallel connector 9 Audio line out connector
3Ethernet connector 10USB connectors
4Serial connector 11Monitor connector
5Power connector 12Serial connector
6PCI slots 13Keyboard connector
7Microphone connector
Note: The connectors on the rear of the computer have color-coded icons to help
you to determine where to connect the cables on your computer.
22 Hardware Maintenance Manual
