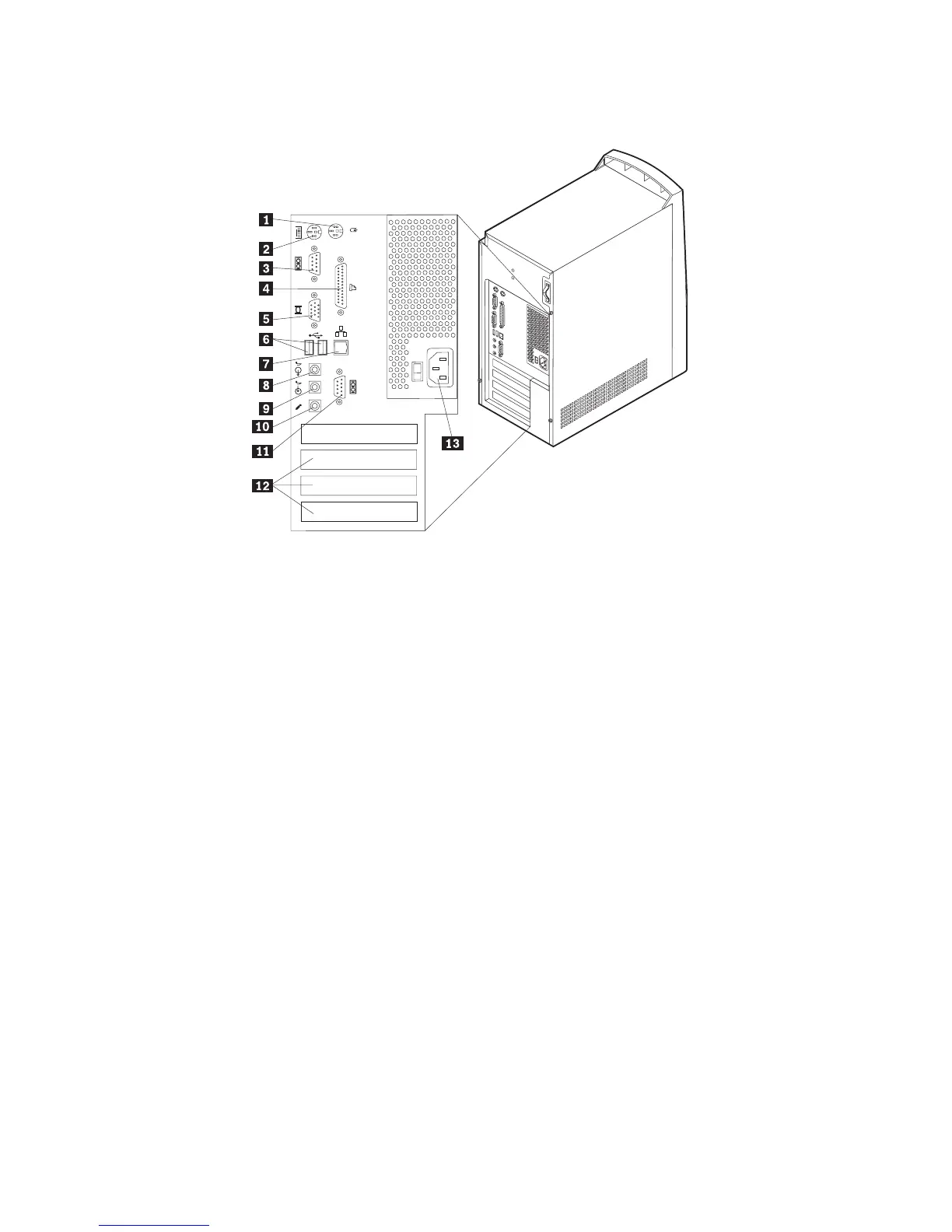

The following illustration shows the location of the connectors on the back of the
microtower model computer.
î1îMouse connector î8îAudio line out connector
î2îKeyboard connector î9îAudio line in connector
î3îSerial connector î10îMicrophone connector
î4îParallel connector î11îSerial connector
î5îMonitor connector î12îPCI slots
î6îUSB connectors î13îPower connector
î7îEthernet connector
Note: The connectors on the rear of the computer have color-coded icons to help
you to determine where to connect the cables on your computer.
24 Hardware Maintenance Manual
