3. Using two people, lift the enclosure and position it over the front of the rails.
Attention: Two people are required to safely lift the enclosure. Using fewer than two people to lift
the enclosure can result in injury.
4. Slide the enclosure into the rack cabinet. Ensure that the rear guide on the enclosure is seated in the
enclosure stop on the support rail.
5. Secure the front of the enclosure to the rack flanges with one M5 screw (C) in the top open hole in
each bracket.
Figure 7. Removing the side covers

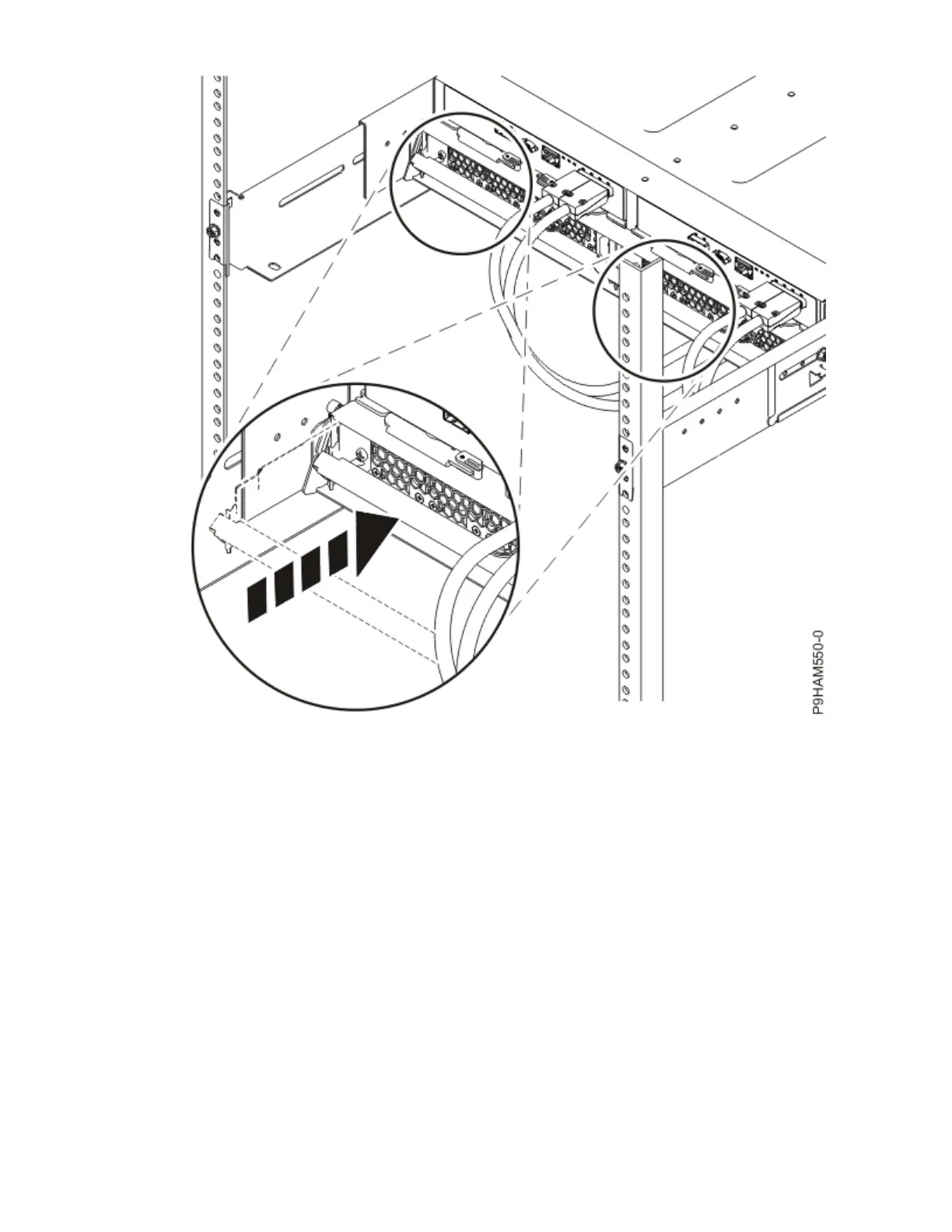

Figure 8. Sliding the enclosure into the rack
8 Power Systems: Installing the Model 024, ESLL, or ESLS storage enclosure
