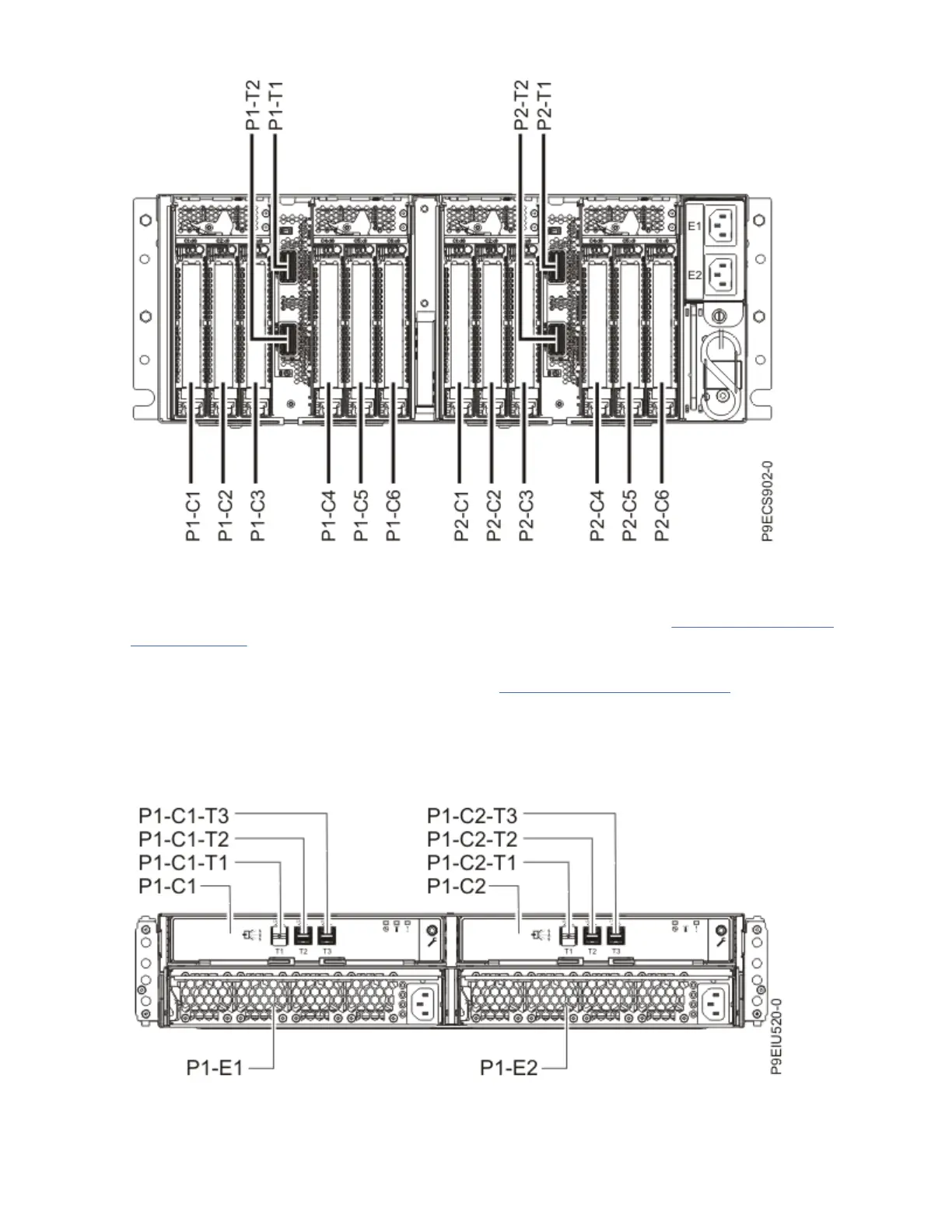

Figure 37. EMX0 PCIe3 expansion drawer showing the left and right PCIe3 6-slot fanout module and top
(T1) and bottom (T2) expansion drawer cable connectors
For more information about the EMX0 PCIe3 expansion drawer locations, see EMX0 PCIe3 expansion
drawer locations (http://www.ibm.com/support/knowledgecenter/POWER9/p9ecs/
p9ecs_emx0_loccodes.htm).
For more information about the server locations, see Part locations and location codes (http://
www.ibm.com/support/knowledgecenter/POWER9/p9ecs/p9ecs_locations.htm).
Connector locations for the ESLL and ESLS storage enclosures
Learn about connector locations for the ESLL and ESLS storage enclosures.
Note: The T1 connectors are not used.
Figure 38. Connector locations for the ESLL and ESLS storage enclosures
Reference information
43
