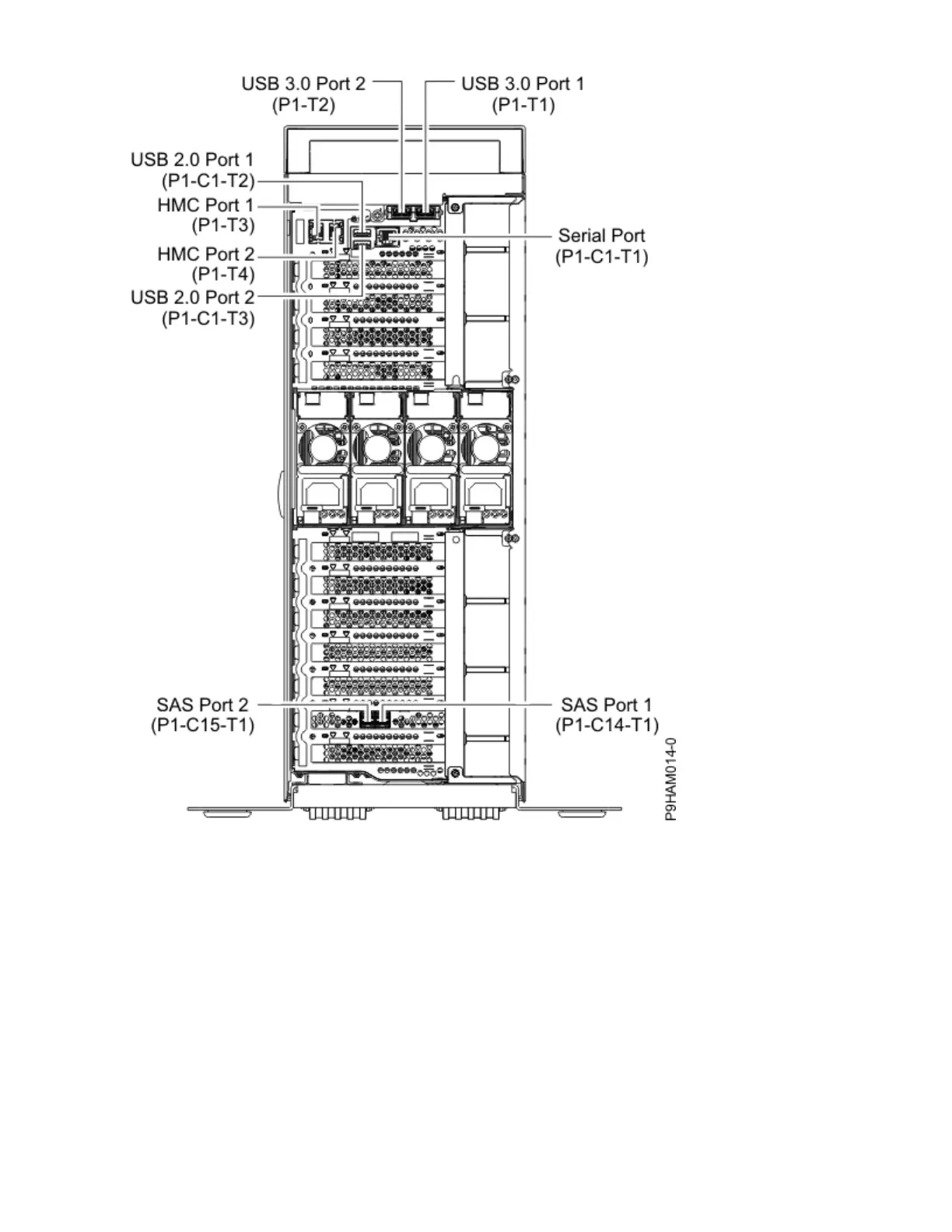

Figure 45. Connector locations for the stand-alone 8286-41A (expanded function) system
Connector locations for the 8247-42L and 8286-42A systems
Learn about connector locations for the 8247-42L and 8286-42A rack-mounted models.
The 8247-42L and 8286-42A (expanded function) servers provide cable connector locations via a SAS
port for disk drive enclosures.
50
Power Systems: Installing the 5887 disk drive enclosure
