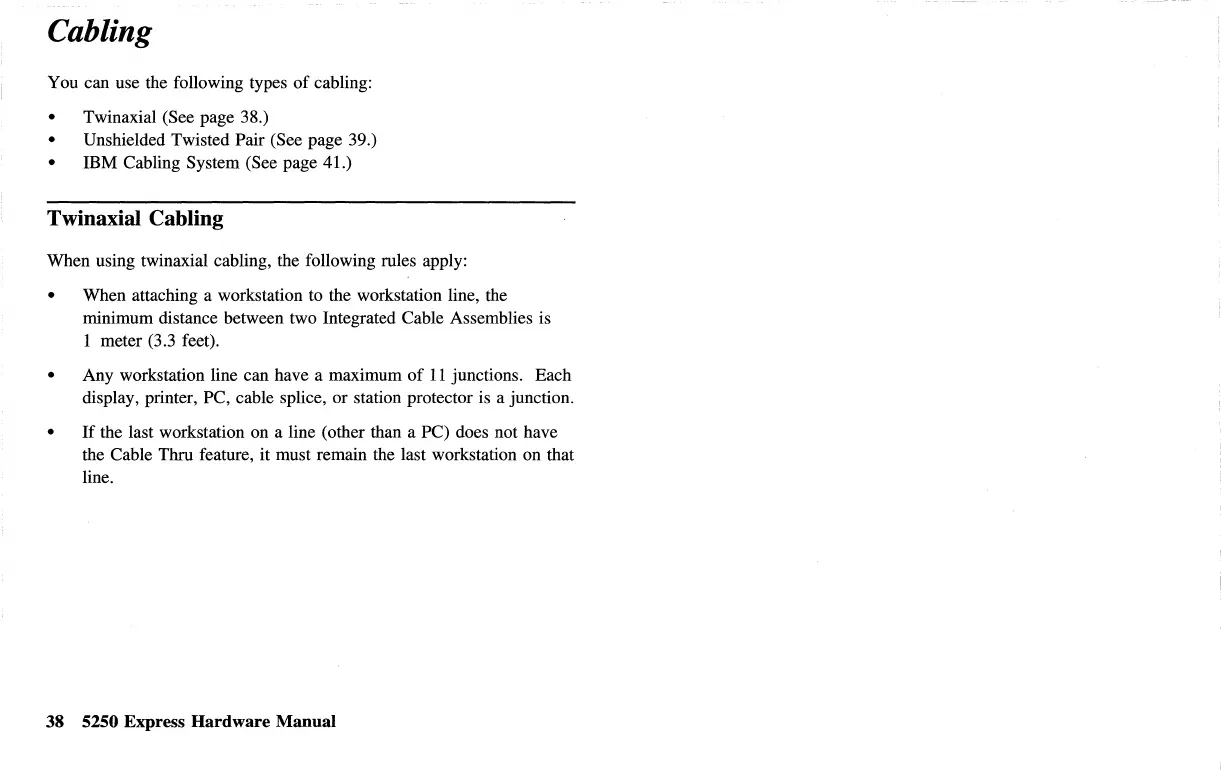

Cabling
You can use the following types
of
cabling:
• Twinaxial (See page 38.)
• Unshielded Twisted Pair (See page 39.)
• IBM Cabling System (See page 41.)
Twinaxial Cabling
When using twinaxial cabling, the following rules apply:
• When attaching a workstation to the workstation line, the
minimum distance between two Integrated Cable Assemblies is
1 meter (3.3 feet).
• Any workstation line can have a maximum
of
11
junctions. Each
display, printer, PC, cable splice, or station protector is a junction.
•
If
the last workstation on a line (other than a PC) does not have
the Cable Thru feature, it must remain the last workstation on that
line.
38 5250 Express Hardware Manual
