8. Remove the midplane assembly.
a. Rotate the midplane assembly up about 45 degrees.
b. Lift the midplane assembly out of the enclosure.
9. Remove the midplane.
a. Remove the six screws that attach the midplane to the midplane assembly.
b. Lift off the failed midplane.

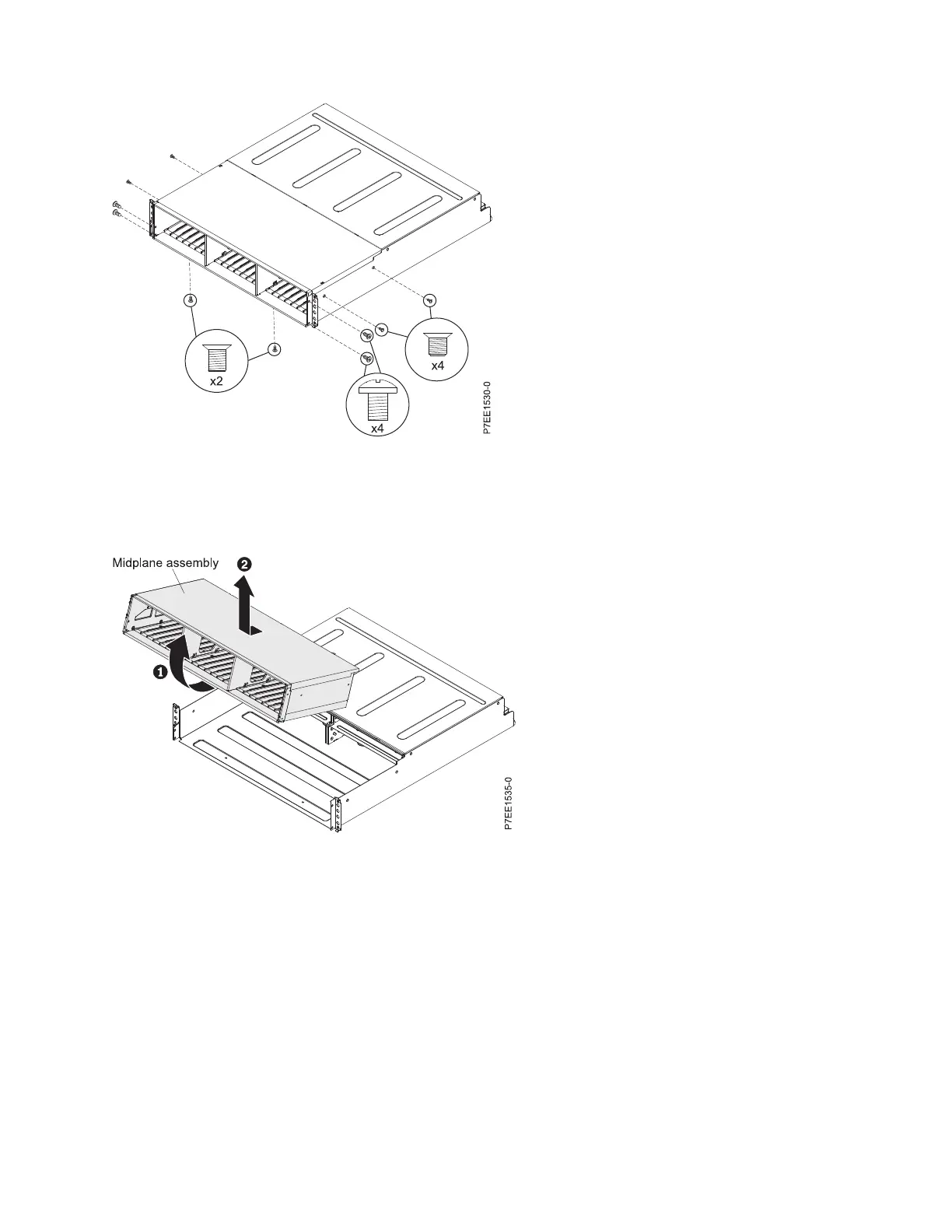

Figure 4. Removing the midplane assembly screws
Figure 5. Removing the midplane assembly
Removal and replacement procedures 7
