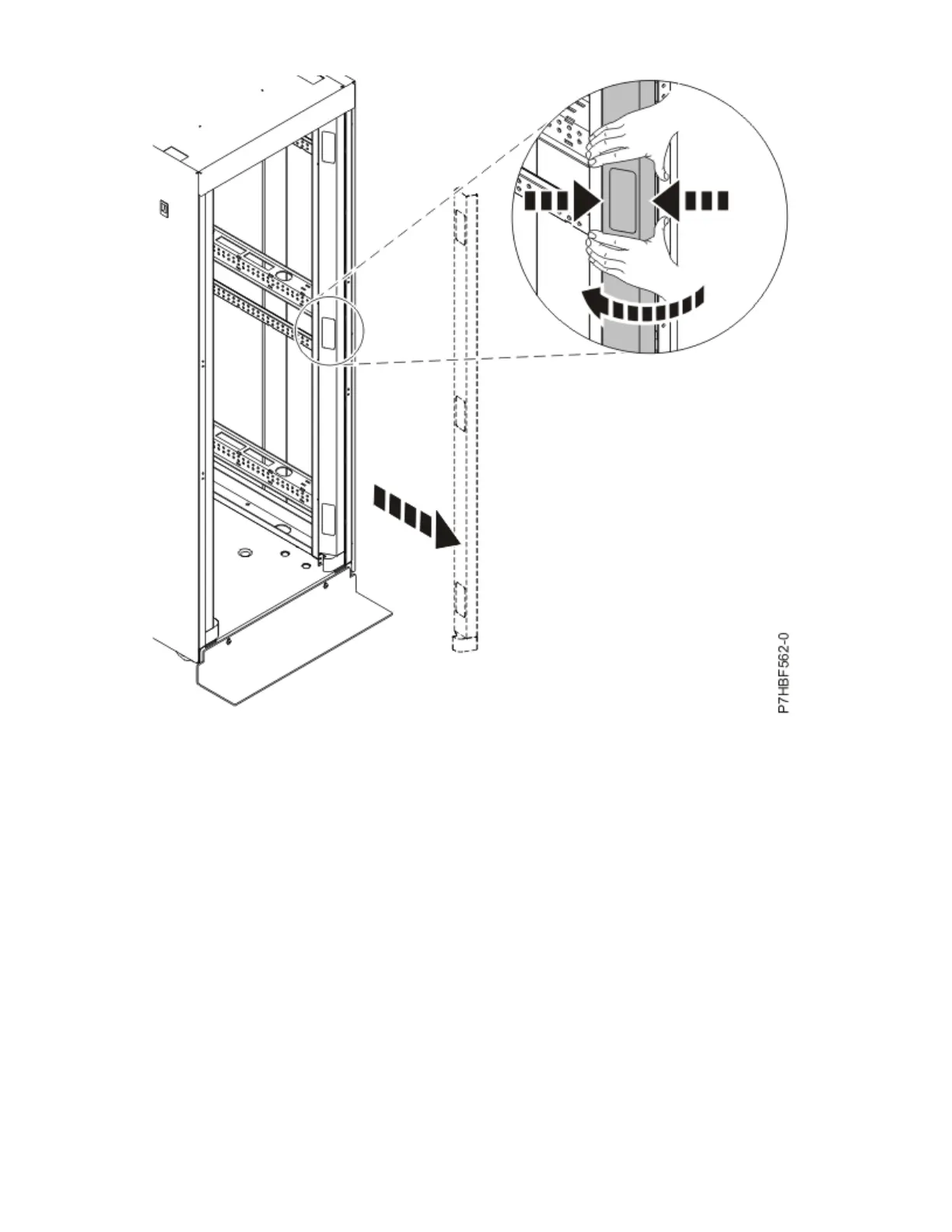

Figure 63. Removing the rack trim panel
2. Squeeze inward rmly with your ngertips to release the spring clips that hold the panel in place.
3. Rotate your hands in slightly until the panel is disengaged.
4. Lift the panel out and set it aside.
5. Repeat this procedure to remove the left side trim panel.
Replacing the 7014-T00 or 7014-T42 trim panels
For racks that use trim panels instead of doors, a reduced-interference panel type must be installed when
certain expansion unit models are present. Use the procedure in this section to replace the trim panels.
About this task
To install the trim panels, complete the following steps:
Procedure
1. Align the bottom plate (A) of the right side trim panel to the bottom of the rack.
92
Power Systems: Racks and rack features
