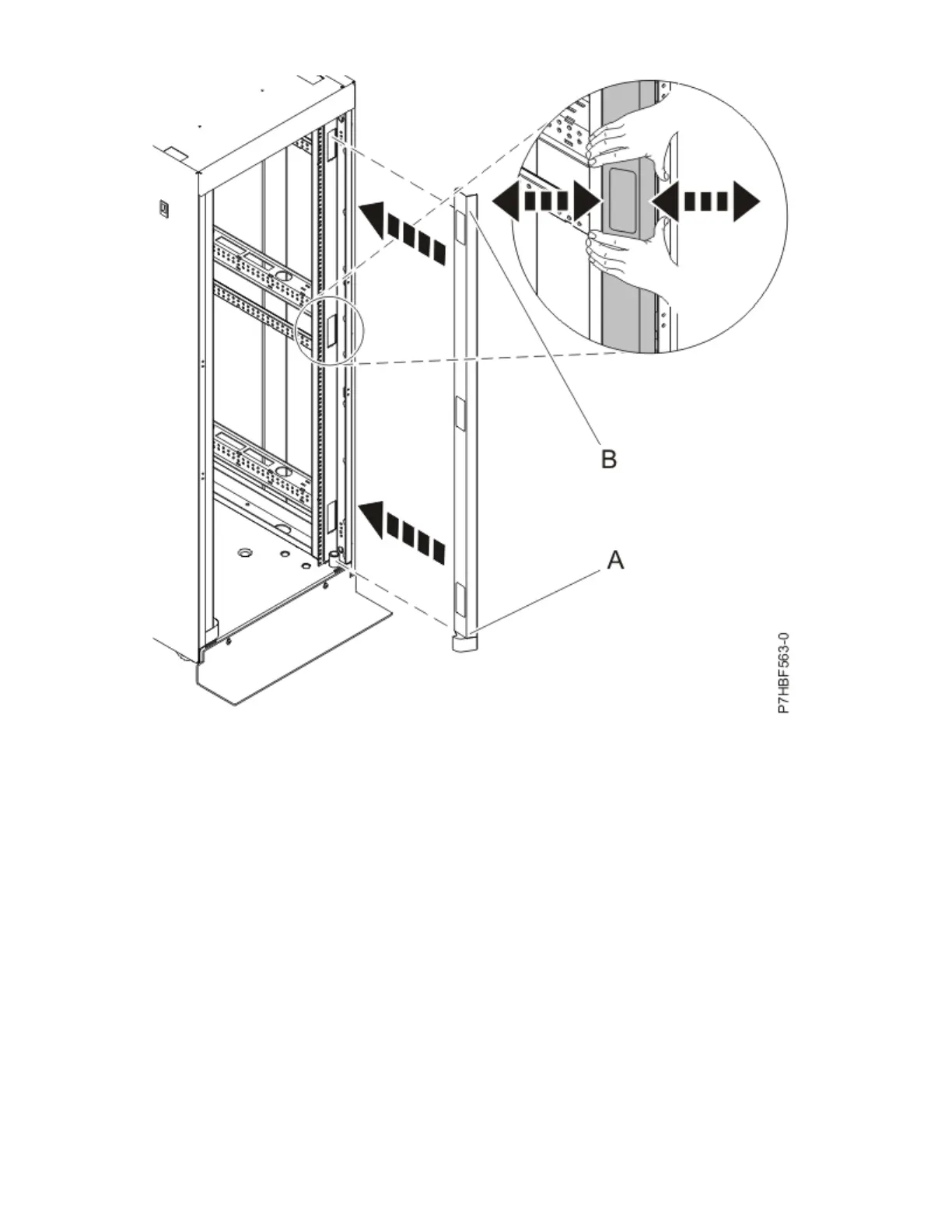

Figure 64. Installing the rack trim panel
2. Align the top of the trim panel (B) and squeeze slightly with your ngertips.
3. After the trim panel is in the correct location, release the pressure to allow the spring clips to hold the
panel in place.
4. Repeat this procedure to install the left side trim panel.
Removing and replacing the rack top cover
You might need to remove or replace the rack top cover. Use these procedures to perform these tasks.
Removing the rack top cover
You might need to remove the rack top cover. Use this procedure to perform this task.
About this task
Note: A 10 mm 6 point (pt) socket with an extension bar is required to remove the screws from the top
cover. Other tools might cause the screw heads to become rounded and unremovable.
To remove the rack cover from the rack, complete the following steps:
Procedure
1. If the top, left, and right trim panels are installed remove them otherwise remove the front door.
Racks and rack features
93
