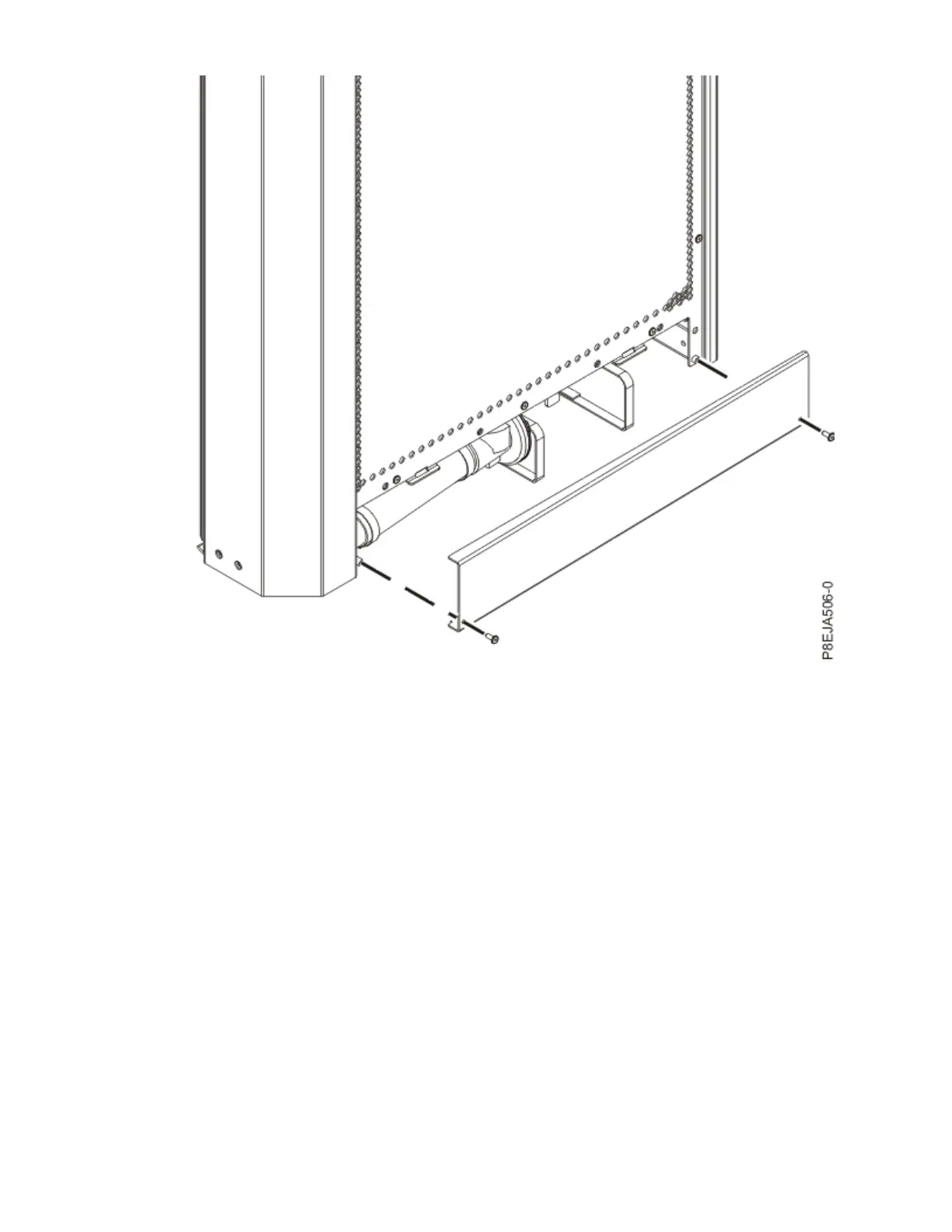

Figure 111. Installing the outer hose panel
Routing cables through the upper and lower air baffles
Bundle and route cables through the upper and lower air baffles.
About this task
For correct air flow in the rack when routing the cables through the upper and lower air baffles, group the
cables in small bundles and spread the cables evenly across the air baffle opening so there are no air
gaps. If the cables are tied in a single round bundle, hot air will escape from the open space in the air
baffle.
The following illustration shows the correct way to bundle and route cables through the upper air baffle.
154
Power Systems: Racks and rack features
