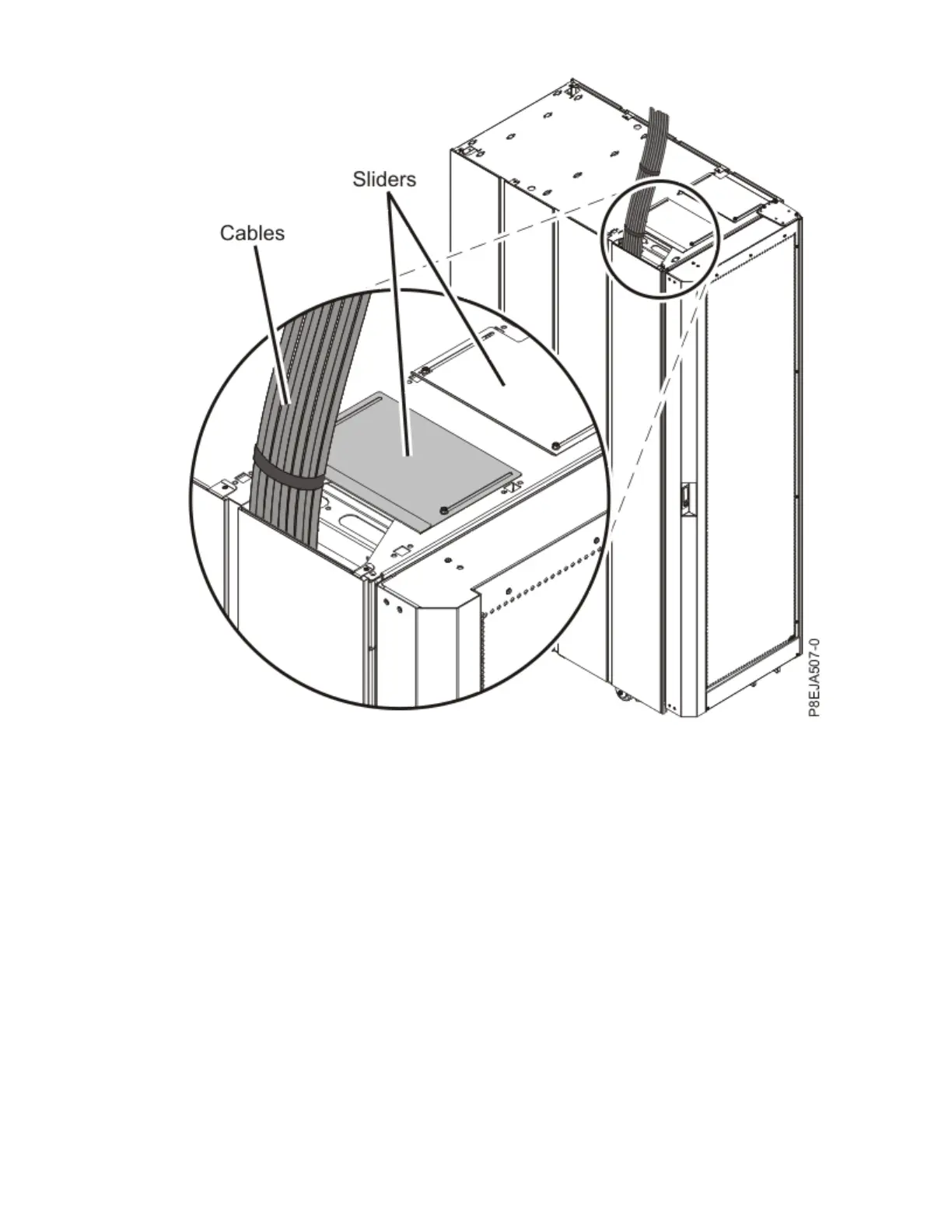

Figure 112. Bundling and routing the cables through the upper air baffle
The following illustration shows the correct way to bundle and route cables through the lower air baffle.
Racks and rack features
155
