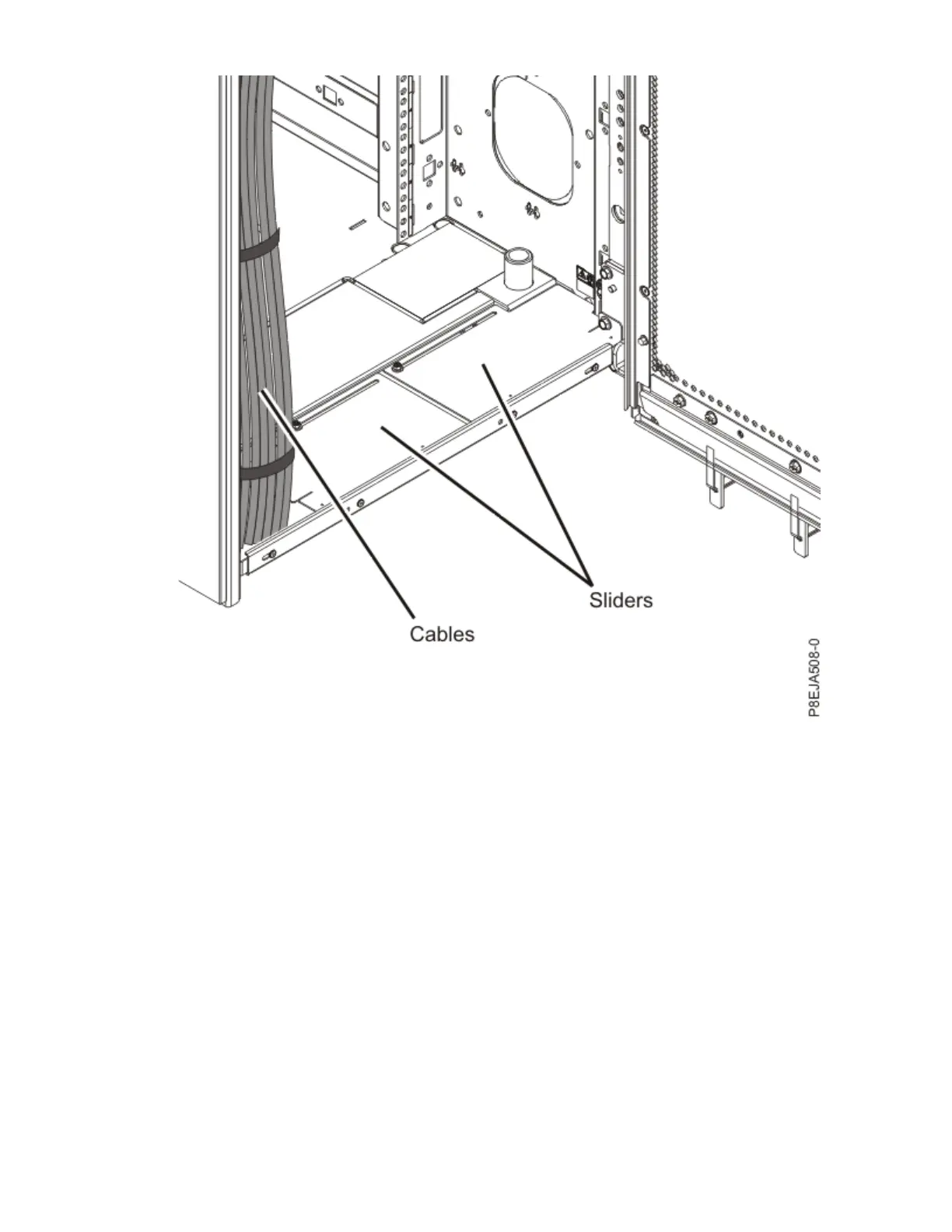

Figure 113. Bundling and routing the cables through the lower air baffle
Front-to-rear cable channels and caps
You can route cables from the front of the rack to the rear by using the cable channels on the sides of the
rack.
About this task
You can route cables from the front of the rack to the rear by using the cable channels on the sides of the
rack. There is one cable channel on each side of the rack.
If a cable channel is not used, make sure that the cap is completely covering the channel opening. This
helps prevent hot air recirculation from the rear of the rack to the front of the rack.
