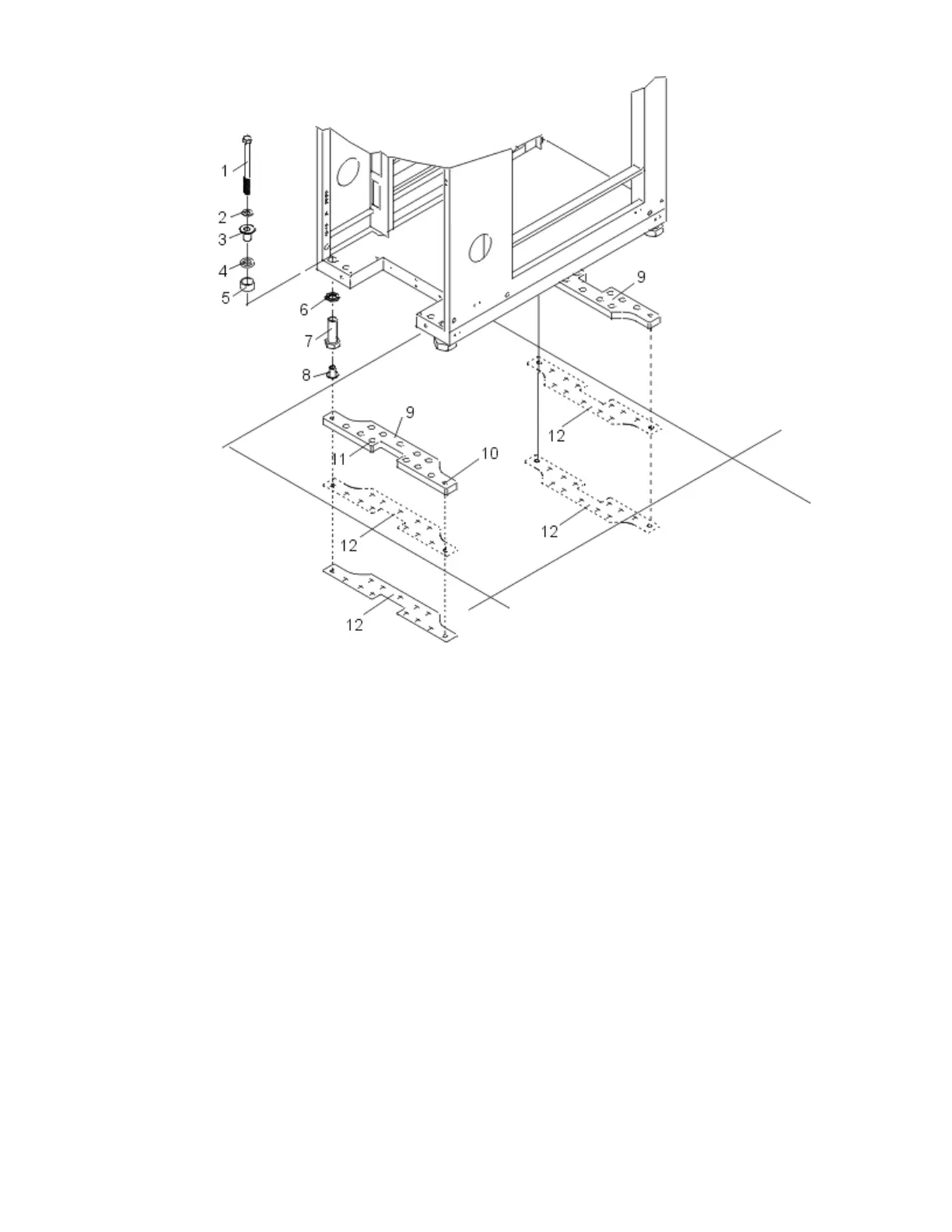

Figure 15. Securing the rack with the triangular brace to the floor
Item
Description Item Description
1 Rack-mounting bolt 7 Leveling foot
2 Thin washer 8 Lower plastic isolator bushing
(used only on DC-powered
systems)
3 Top plastic isolator bushing 9 Mounting plate
4 Thick washer 10 Threaded hole (used to secure
the rack to mounting plate.)
5 Spacer 11 Anchor bolt hole
6 Jam nut 12 Traced pattern (pattern to be
traced onto the floor using the
mounting plate as a template)
20 Power Systems: Racks and rack features
