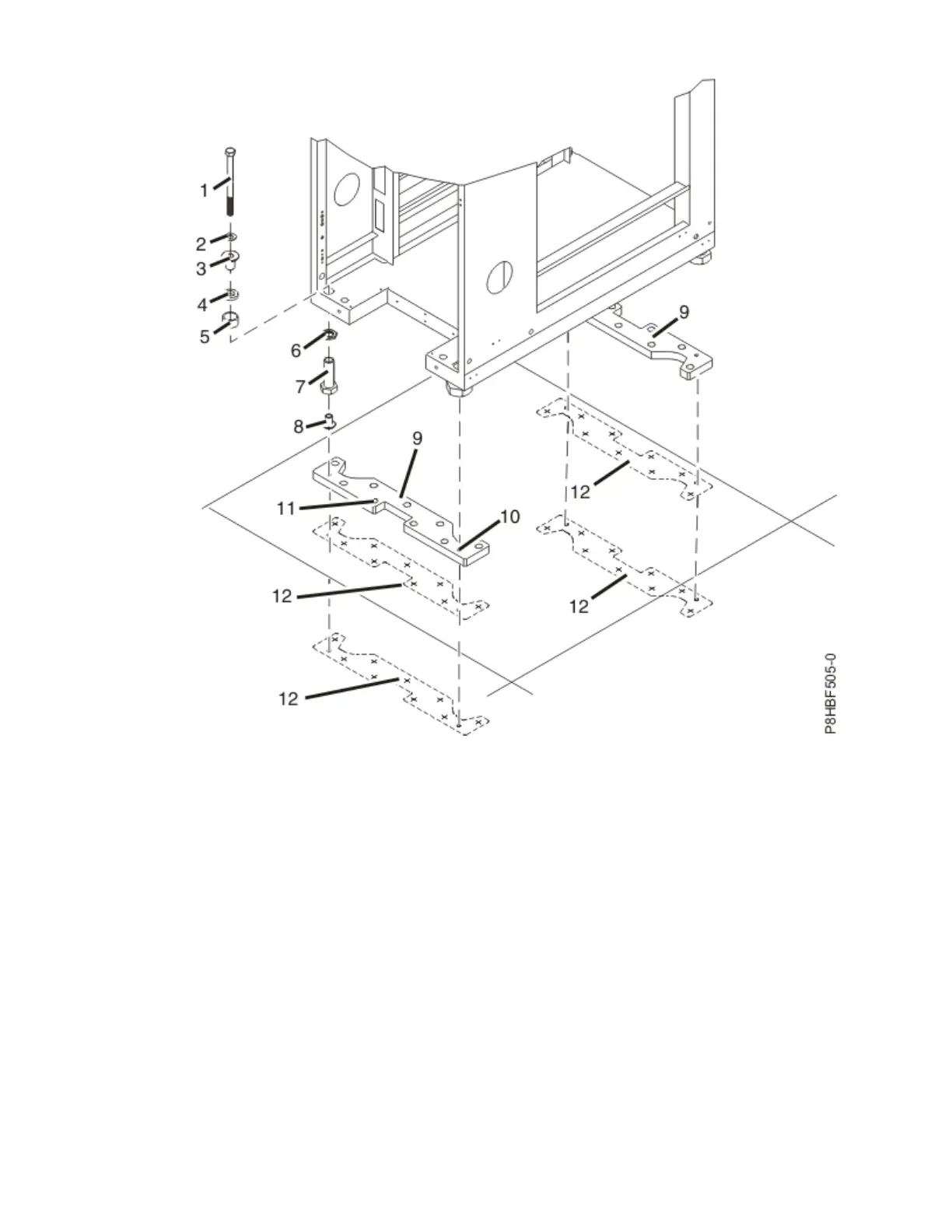

Figure 16. Securing the rack with the "X" brace to the floor
Item
Description Item Description
1 Rack-mounting bolt 7 Leveling foot
2 Thin washer 8 Lower plastic isolator bushing
(used only on DC-powered
systems)
3 Top plastic isolator bushing 9 Mounting plate
4 Thick washer 10 Threaded hole (used to secure
the rack to mounting plate.)
5 Spacer 11 Anchor bolt hole
6 Jam nut 12 Traced pattern (pattern to be
traced onto the floor, using the
mounting plate as a template)
Note: If this is a DC-powered installation, ensure that the bottom isolators are installed.
34. Position the rack over the front rack-mounting plate.
Racks and rack features
21
