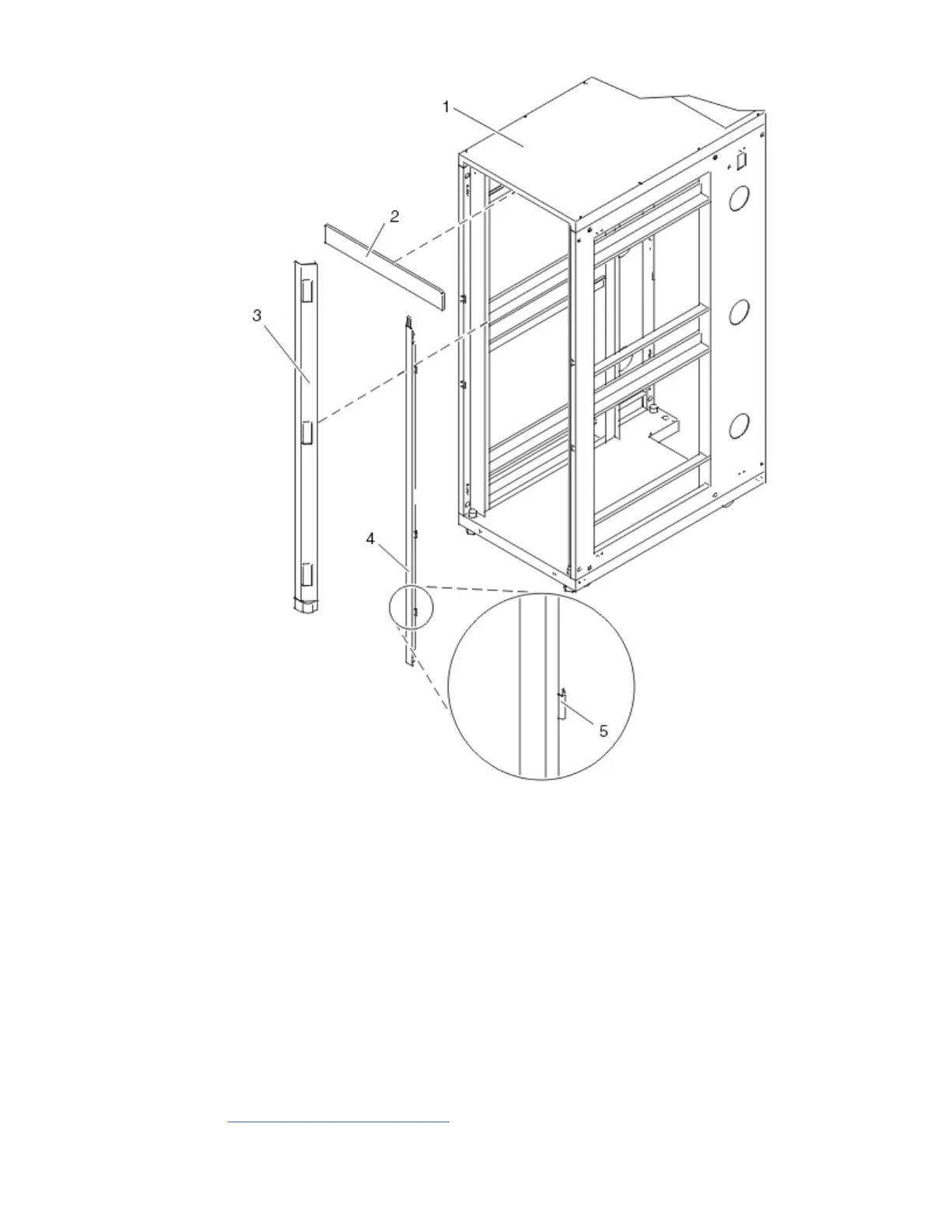

Item Description Item Description
1 Rack chassis 4 Right-side trim panel
2 Top trim panel 5 Spring clip
3 Left-side trim panel
3. Install the door latch on the right and the door hinges on the left.
4. For a high-perforation front door, align the door over the rack hinge, then move up the hinge pin on the
door, and lower the hinge pin into the hinge.
5. Adjust the latch so the door latches securely.
Installing the rack security kit
You might need to install the rack security kit.
To install a rack security kit (feature 6580) that consists of the security lock and security slide bars,
complete the following steps:
1. Read the “Rack safety notices” on page 1.
2. Verify the inventory in the rack security kit.
Racks and rack features
79
