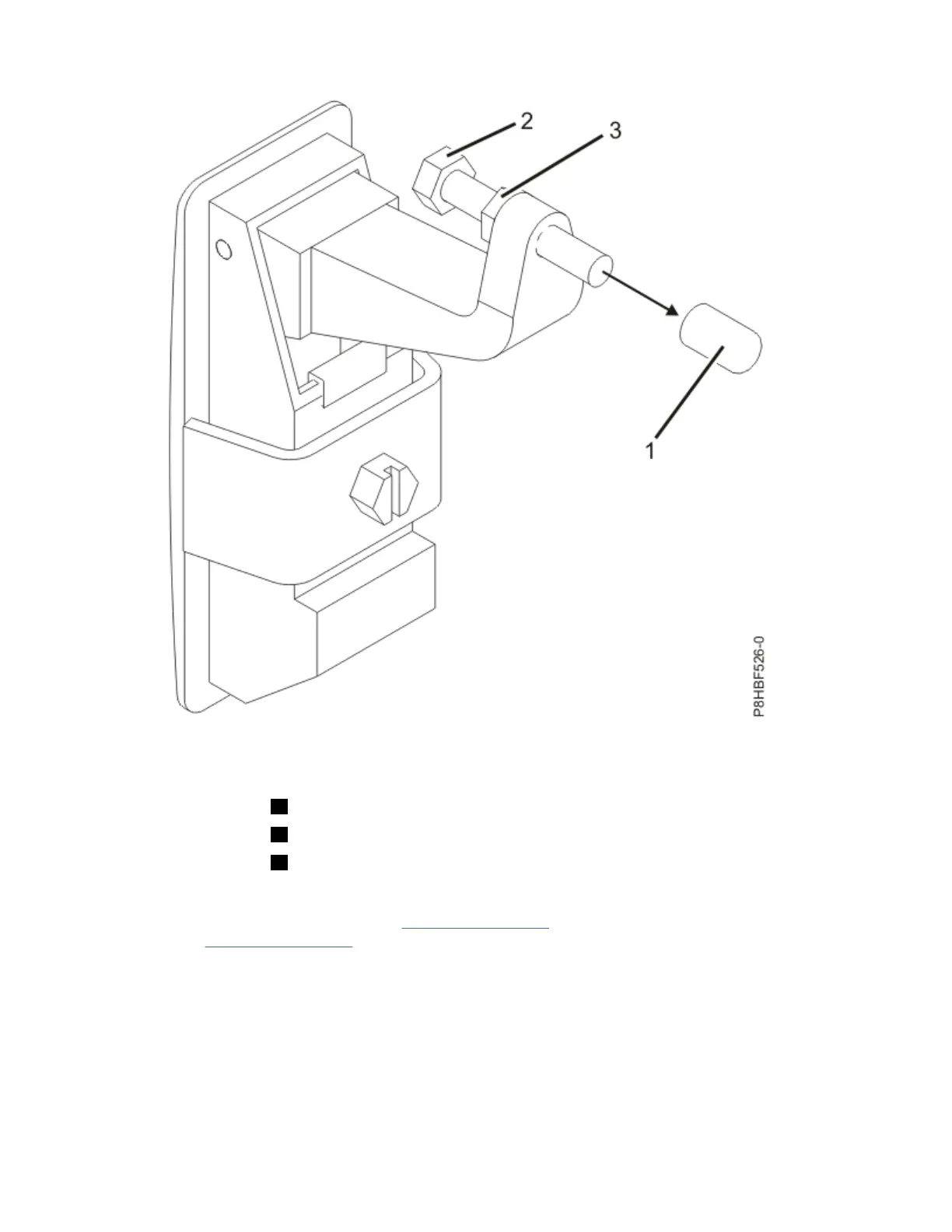

Figure 55. Standard latch
Item
Description
1 End cap
2 Screw
3 Hex nut
5. Assemble the ruggedized latch. To assemble the ruggedized latch, perform the following tasks:
Note: Refer to the Standard latch (Figure 55 on page 83) for steps 5a through 5d and the Ruggedized
latch (Figure 54 on page 82) for steps 5e through 5i.
a. Remove the end cap (1) from the new latch and discard.
b. Loosen the hex nut (3).
c. Remove the screw (2) from the new latch.
d. Remove the nut (3) from the screw.
e. Insert the screw (4) into the new latch in the reverse orientation.
f. Screw the hex nut (3) onto the screw (4).
g. Screw the hex nut (2) onto the screw (4).
Racks and rack features
83
