4. Install the first two standoffs in the upper-left and lower-right corners of the first rack as shown in
Figure 32.
5. Install the second two standoffs in the upper-left and lower-right corners of the second rack as
shown in Figure 32.
6. Attach the long foam as shown in Figure 32. For a model T42 rack, join the short foam to the end of
the long foam, and adhere it to the frame length of the rack.
7. Position the racks together.
8. Align the standoff holes. You might need to adjust the leveling feet to do this.

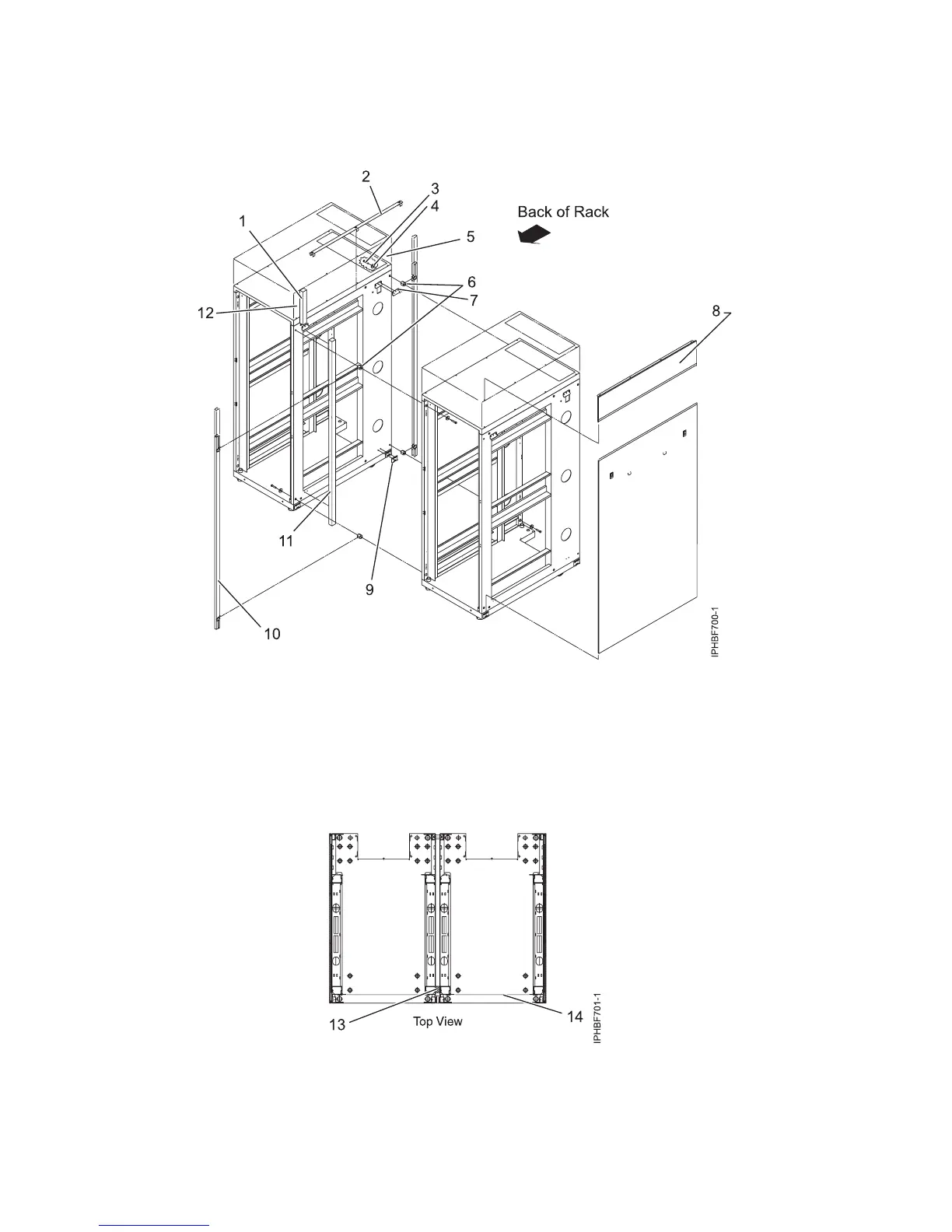

Figure 32. Removing the side panels, Z and J brackets, and installing standoffs and long foam to connect multiple
racks
Figure 33. Location of foam strips (top view)
34 Power Systems: Racks and rack features
