Note: When installed correctly, the slide rail moves from front to back.
c. Reinstall the side panel cover on to the rack.
d. Lock the side panel covers by sliding the bars to the front of the rack.
e. Place a locked/unlocked sticker on the inside of the cover panel so that when the slide bar is in
the locked position, the tab is over the locked symbol (11), as shown in Figure 28, and over the
unlocked symbol (12), when the slide bar is unlocked.
f. Repeat the procedure for the left side of the rack.
Ruggedized kit
You might need to remove or replace a part in the ruggedized kit. This section includes procedures so
that you can perform these tasks.

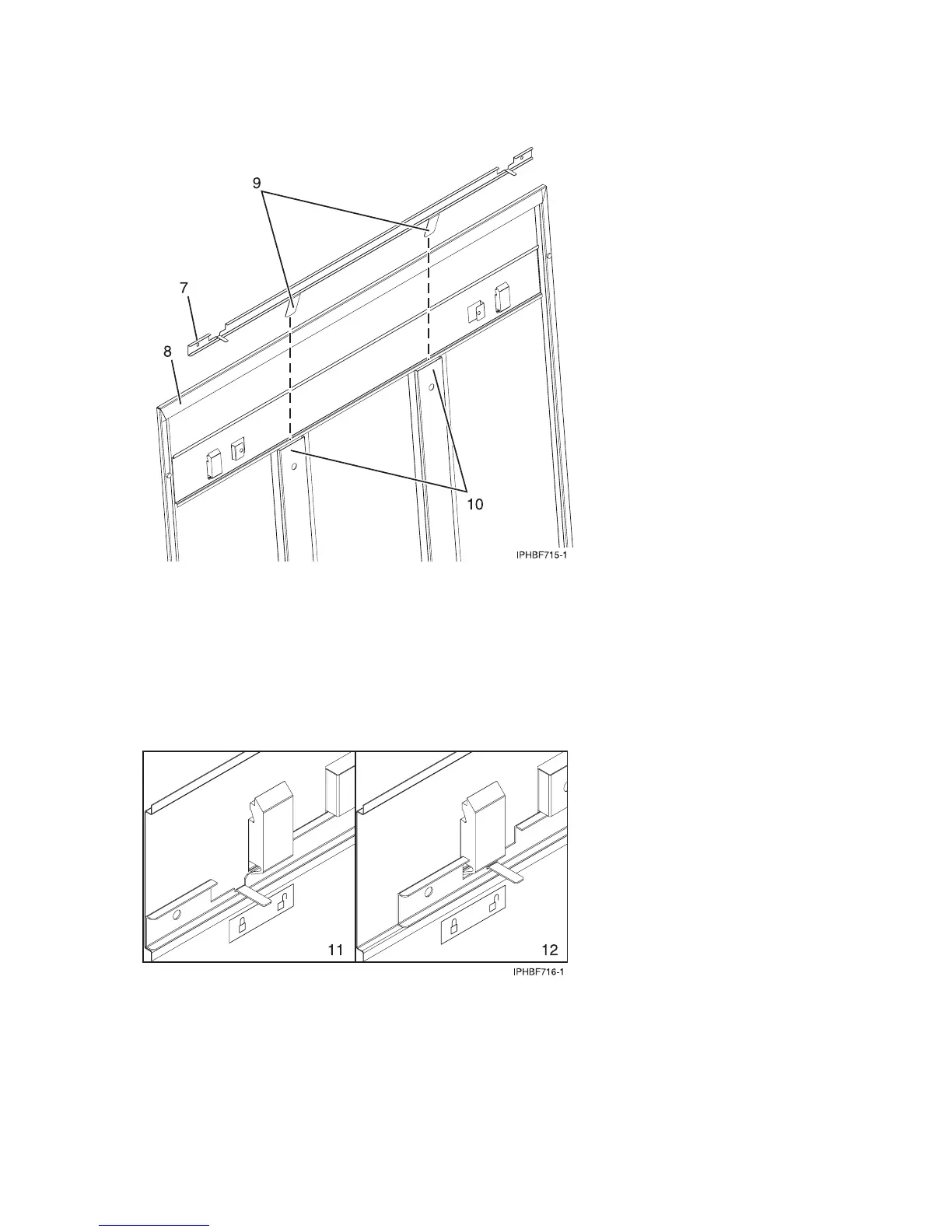

Figure 27. Installing a security slide bar
Figure 28. Placing the locked/unlocked sticker on the cover panel
30 Power Systems: Racks and rack features
