D Top cover
E Cable access cover
F Side cover (quantity 2)
G EIA label
8. Lift off the top cover.
Replacing the rack top cover:
You might need to replace the rack top cover. Use this procedure to perform this task.
Note: A 10 mm box socket with an extension bar is required to replace the screws into the rack top cover.
Other tools might cause the screw heads to become rounded and unable to be removed again.
To replace the rack top cover onto the rack, complete the following steps:
1. Position the rack top cover (D) on the rack.
2. Install the six screws at the left and right sides of the rack top cover.

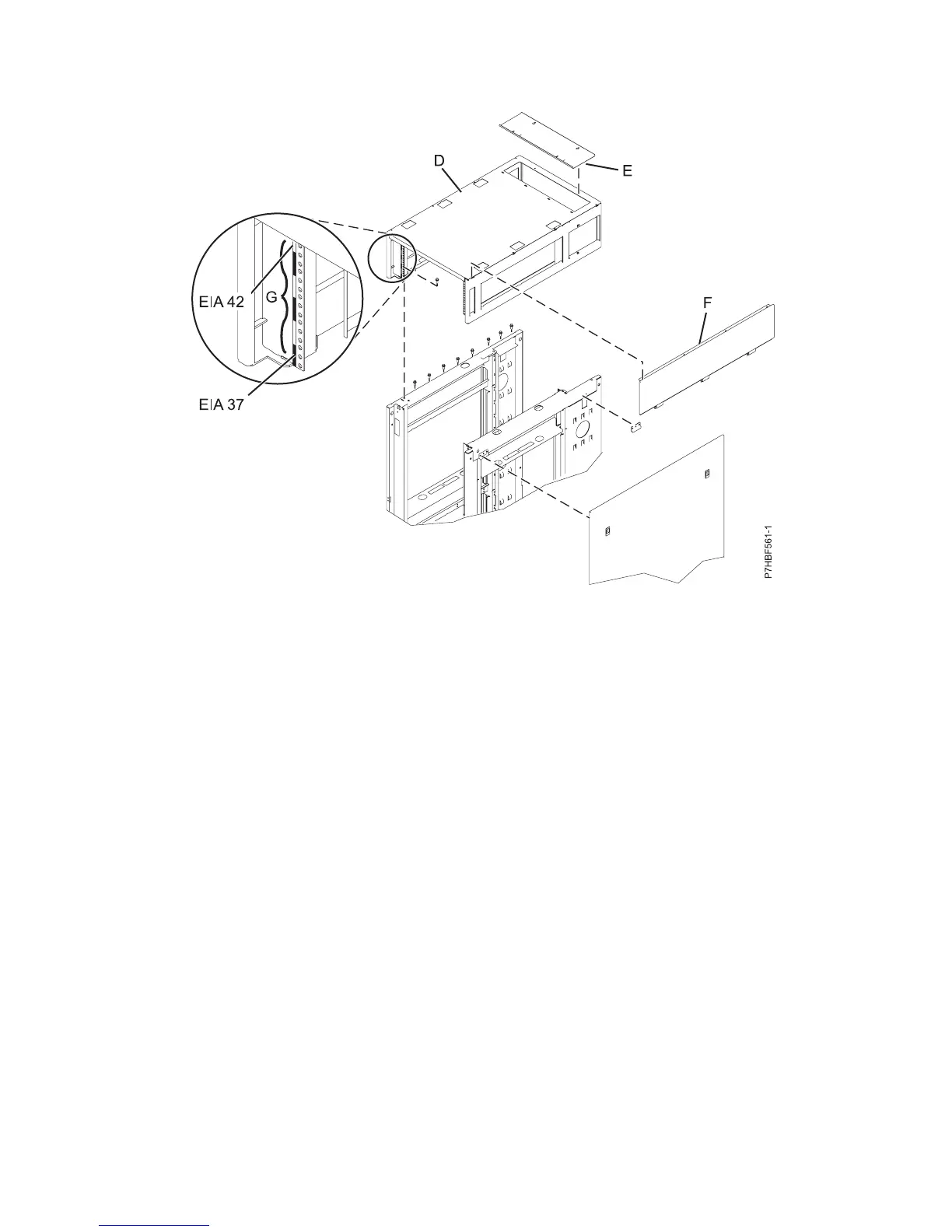

Figure 35. Removing the top cover
Racks and rack features 37
