D Top cover
E Cable access cover
F Side cover (quantity 2)
G EIA label
Note: A 10 mm box socket with an extension bar is required to replace the screws into the rack top
cover. Other tools might cause the screw heads to become rounded and unable to be removed again.
3. Remove the rack braces (A) and (C) by unfastening them at the top of the rack, just below the top
cover. Remove the braces at the front and rear of the rack.

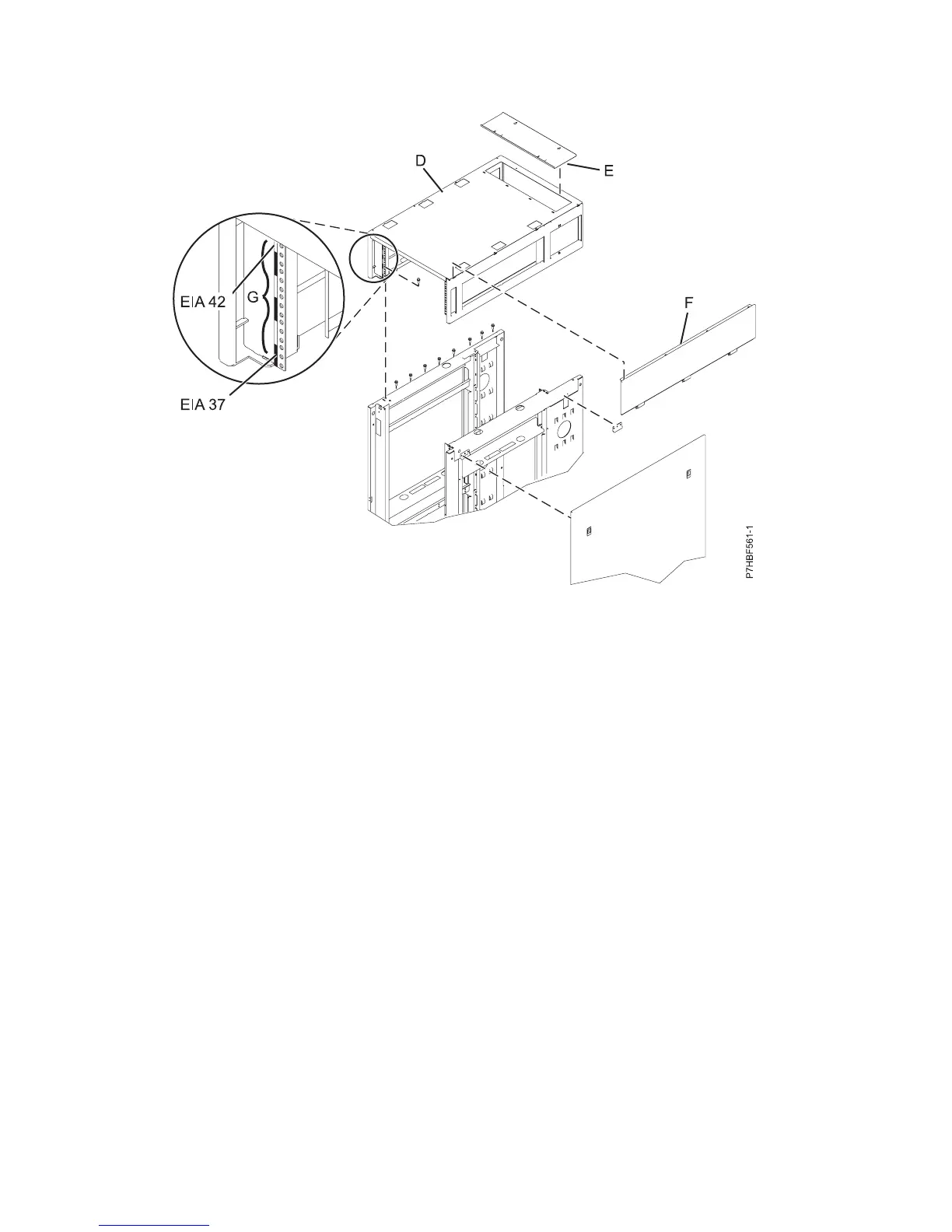

Figure 36. Removing the top cover
38 Power Systems: Racks and rack features
