Removing and replacing 7014-T00 or 7014-T42 side panels

Learn how to remove and replace a side panel on a rack. Use the procedures in this section to perform

this task.

Removing a 7014-T00 or 7014-T42 side panel:

Use the procedure in this section to remove a side panel on a rack.

To remove a side panel, complete the following steps:

1. Unlock the side panels by pressing down on both locking latches to release the latches.

Note: If your rack uses a ruggedized kit, you must remove the securing screw to allow each side

panel to be removed. See “Releasing the side panel with a ruggedized kit” on page 32.

2. Tilt the top of the side panel slightly toward you.

3. Lift the side panel away from the ridge on the bottom of the rack.

4. Repeat this procedure for the other side panel.

Figure 18. Reinstalling the cable channel cover

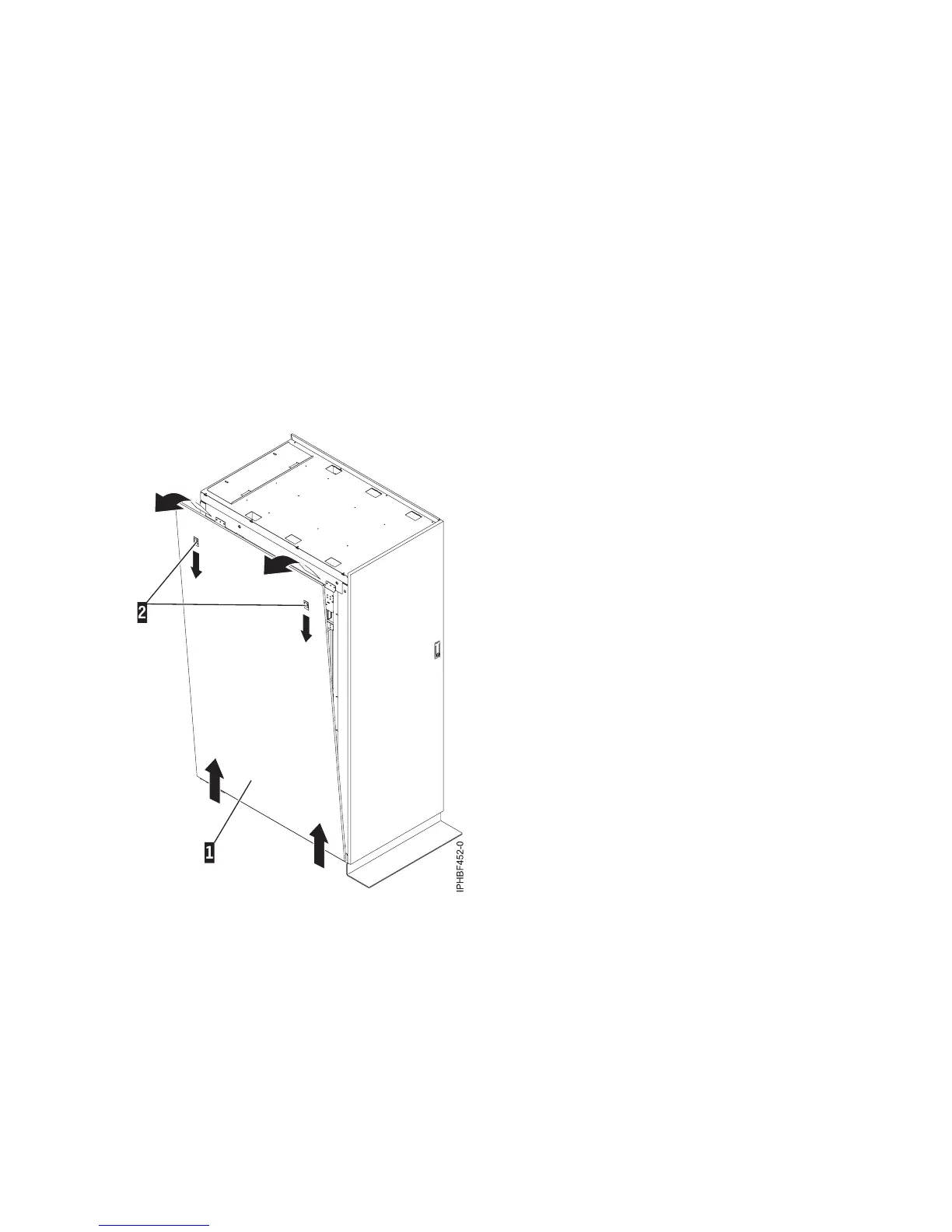

Figure 19. Removing the side panel

Racks and rack features 21
