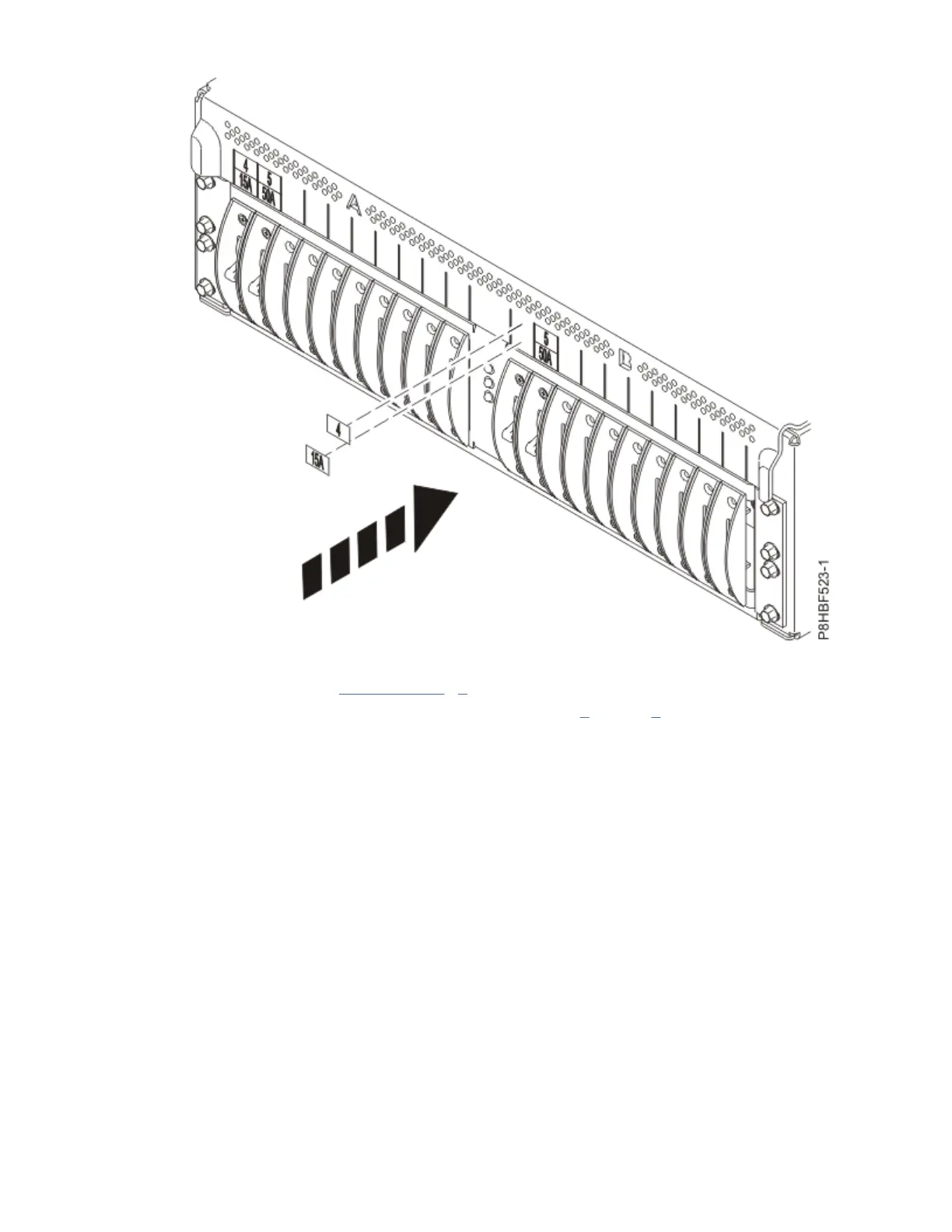

Figure 28. PDP circuit breaker labeling (circuit breaker position shown is for reference only)
6. If applicable, repeat steps “1” on page 37 - 5 for the B side circuit breaker.
7. If you want to install additional circuit breakers, repeat steps 1 through 6.
Removing the system component circuit breakers from the PDP
This section provides information about removing and replacing a circuit breaker from PDP.
About this task
To remove the system component circuit breakers from the PDP, complete the following steps:
Procedure
1. Ensure all operation (processes) have been shut down in the device that controls the circuit breakers.
2. Place the circuit breakers in the off position.
3. Remove the bottom screw holding circuit breaker cover to the selected circuit breaker position on the
A side of the PDP.
40
Power Systems: Racks and rack features
