Store the shipping bracket if you want to move your system at a later date.
2. Cable the server.
a. Plug the top two power cords into the power supply and attach the cables to the handles on the
power supply with cable ties or hook-and-loop fasteners.

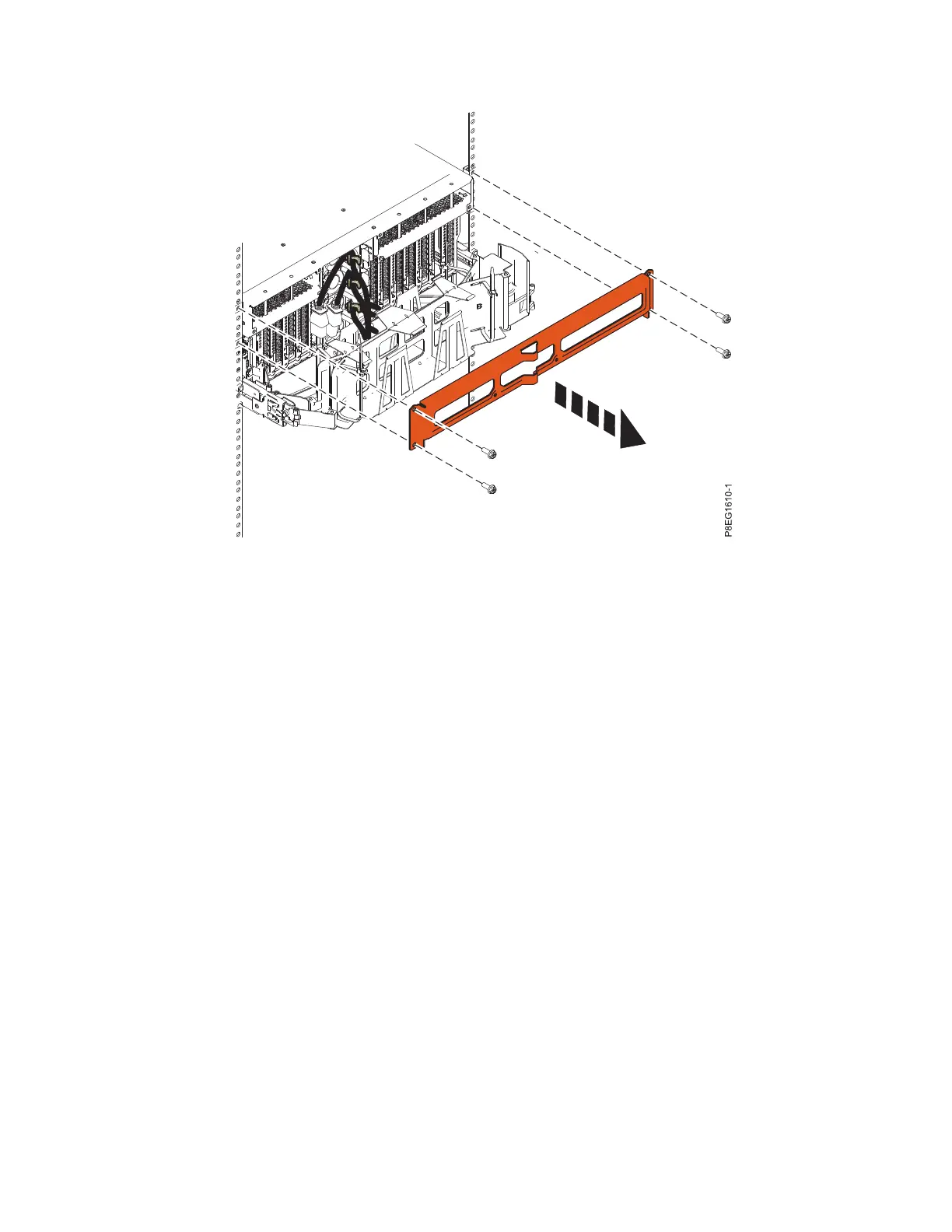

Figure 18. Removing the shipping bracket from the rear of the chassis
Installing the IBM Power System S814 (8286-41A) 27

IBM 8286-41A Specifications

General

Processor	POWER8
Operating System	AIX, IBM i, Linux
RAID Support	RAID 0, 5, 6, 10
Processor Cores	Up to 24 cores per processor
Model	8286-41A
Number of Processors Supported	2
Network Interface	Gigabit Ethernet
Power Supply	Dual redundant power supplies
