3. Lift the blue release latches (1) on the slide rails and push the server (2) all the way into the rack until
it clicks into place. For details, see Figure 8.
Installing the cable-management arm
The cable-management arm is used to efficiently route cables so that you have proper access to the rear
of the system. Use the procedure to install the cable-management arm.
To install the cable-management arm, complete the following steps:
1. Ensure that you have the following parts.
Item Description
▌A▐ Support arm
▌B▐ Cable-management stop bracket
▌C▐ Mounting bracket
▌D▐ Cable-management arm
▌E▐ Extension bracket
1
3
4
2
5
P8EG1602-0

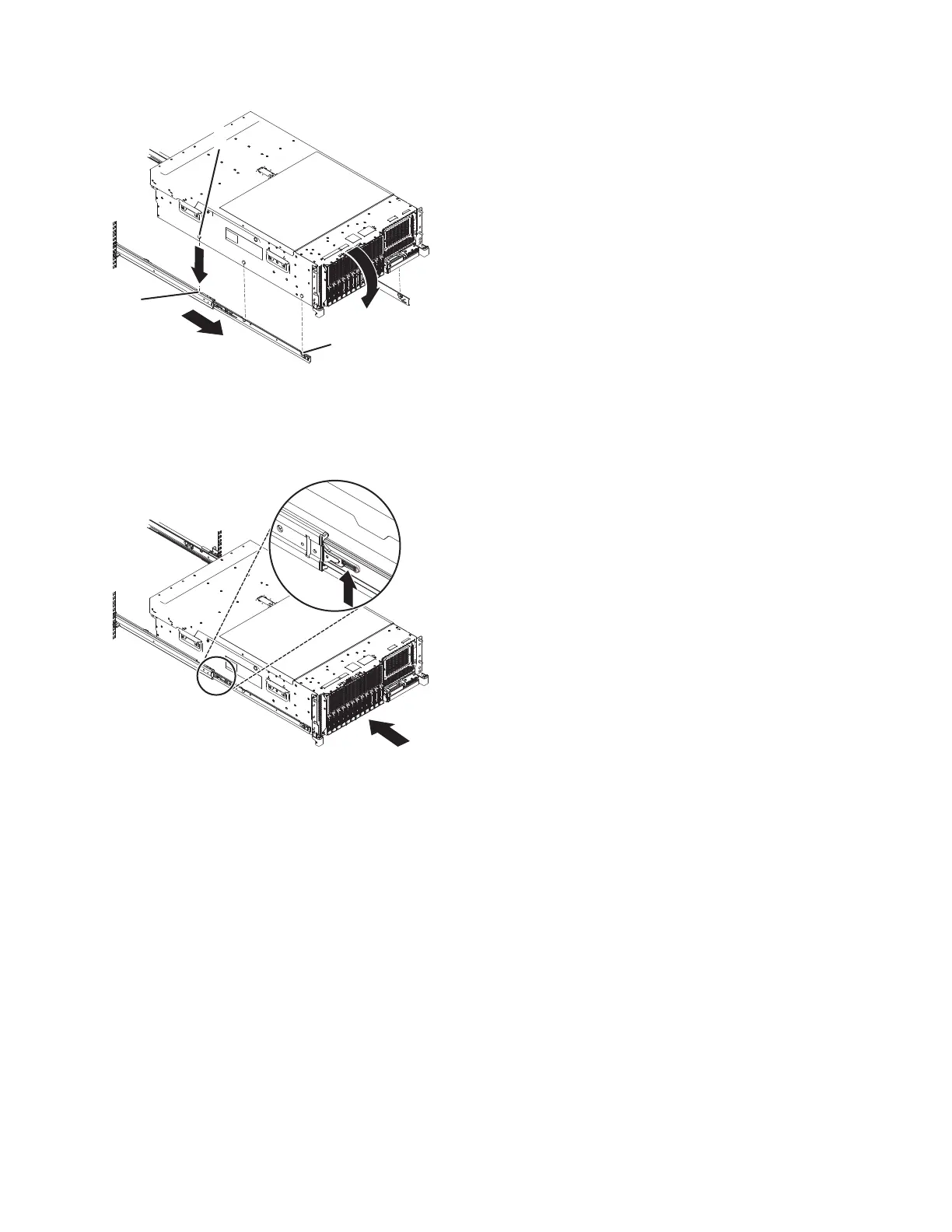

Figure 7. Extending slide rails and aligning server nail heads with the slots on the rail
2
P8EG1601-0
1
Figure 8. Release latches and server
Installing the IBM Power System S814 (8286-41A) 7

IBM 8286-41A Specifications

General

Processor	POWER8
Operating System	AIX, IBM i, Linux
RAID Support	RAID 0, 5, 6, 10
Processor Cores	Up to 24 cores per processor
Model	8286-41A
Number of Processors Supported	2
Network Interface	Gigabit Ethernet
Power Supply	Dual redundant power supplies
