2. The cable-management arm can be installed on either side of the server. For this procedure, it is
illustrated that you are installing it on the right side, while you are facing the server from the rear.
Connect one end of the support arm (A) to the right slide rail (1) so that you can swing the other end
of the support arm toward the left side of the rack (2).
Note: The support arm (A) is labeled UP and DOWN. Ensure that the side labeled UP is facing
upward and to the right.
3. Locate the hole at the bottom inside corner of the L-shaped cable-management stop bracket (B).
Position the unattached end of the support arm so that the locking tab on the underside of its tip
aligns with the bracket hole. Insert the tab into the hole (1) and turn the bracket (2) to secure it to the
support arm. For details, see Figure 11 on page 9.

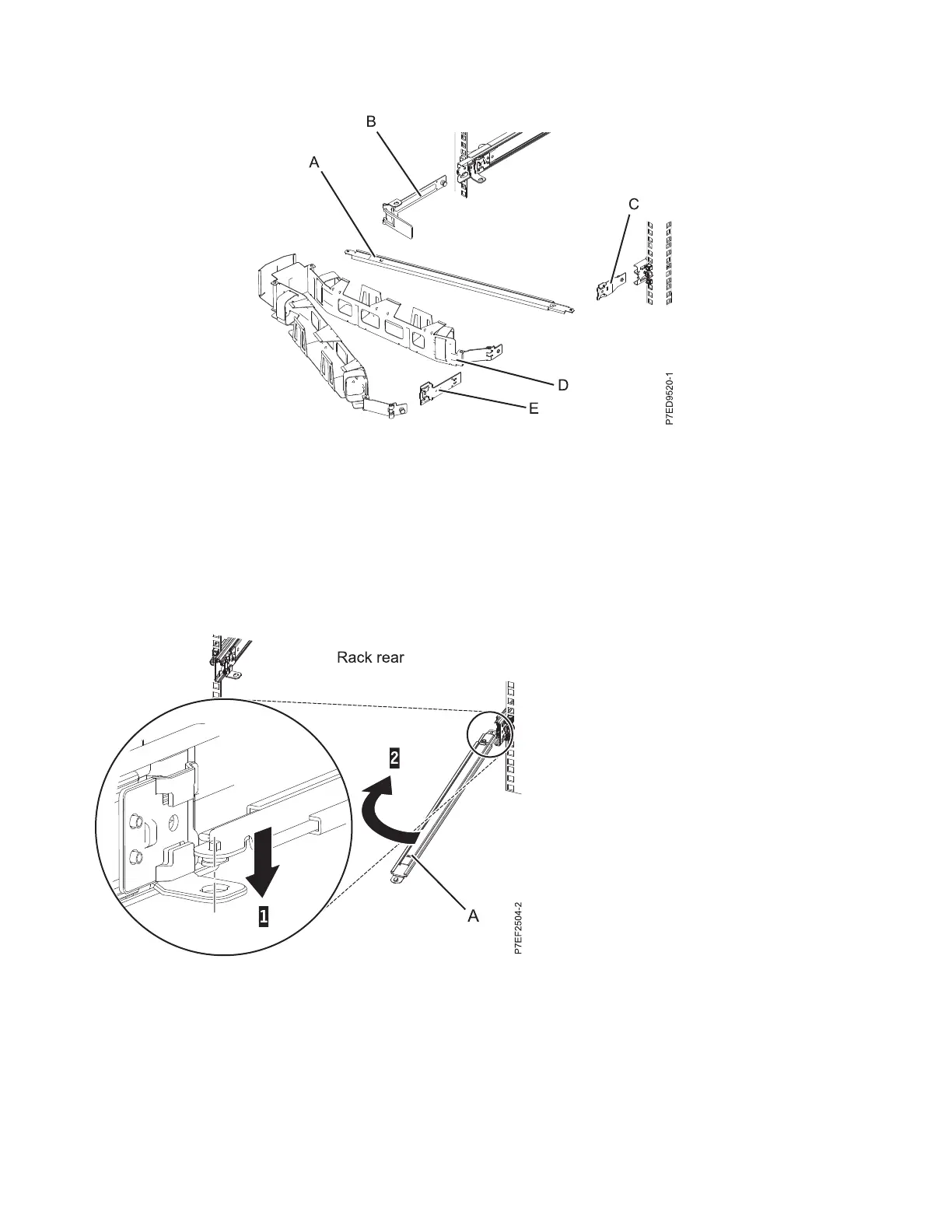

Figure 9. Relative positions of the cable-management arm parts before assembly
Figure 10. Connecting the support arm
8 Power Systems: Installing the IBM Power System S814 (8286-41A)
