Installing a management module
To install a management module, complete the following steps.

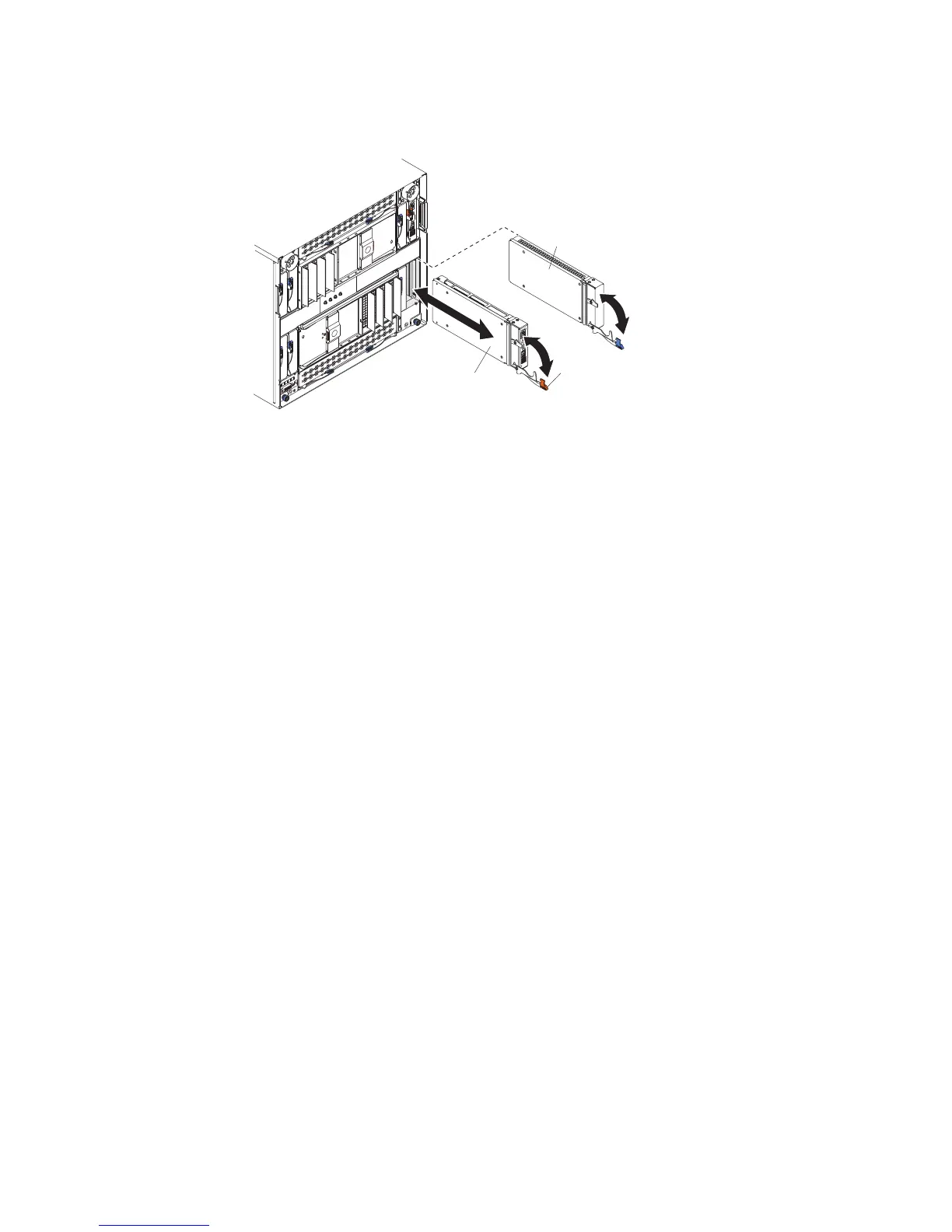

Management
module
Release handle
(open)
Module
filler
1. Remove the module filler if one is installed.
2. Make sure that the release handle on the module is in the open position.
3. Slide the module into the module bay until it stops.
4. Push the release handle on the module to the closed position.
5. Connect any cables to the module.
6. If the BladeCenter unit is connected to power:
v Make sure that the OK LED on the module is lit.
v If this is a redundant management module, wait at least 45 minutes for the
modules to copy.
26 BladeCenter H Type 8852, 7989, and 1886: Installation and User’s Guide
