d. Close the tray levers and make sure they are securely latched.
e. Close the microprocessor-tray release latch.
f. Reinstall the fans and memory cards in the server.
If you have other options to install or remove, do so now; otherwise, go to
“Completing the installation” on page 23.
Installing an adapter
The following describes how to install adapters in the server.
Installing the Remote Supervisor Adapter II SlimLine
The optional IBM Remote Supervisor Adapter II SlimLine must be installed in its

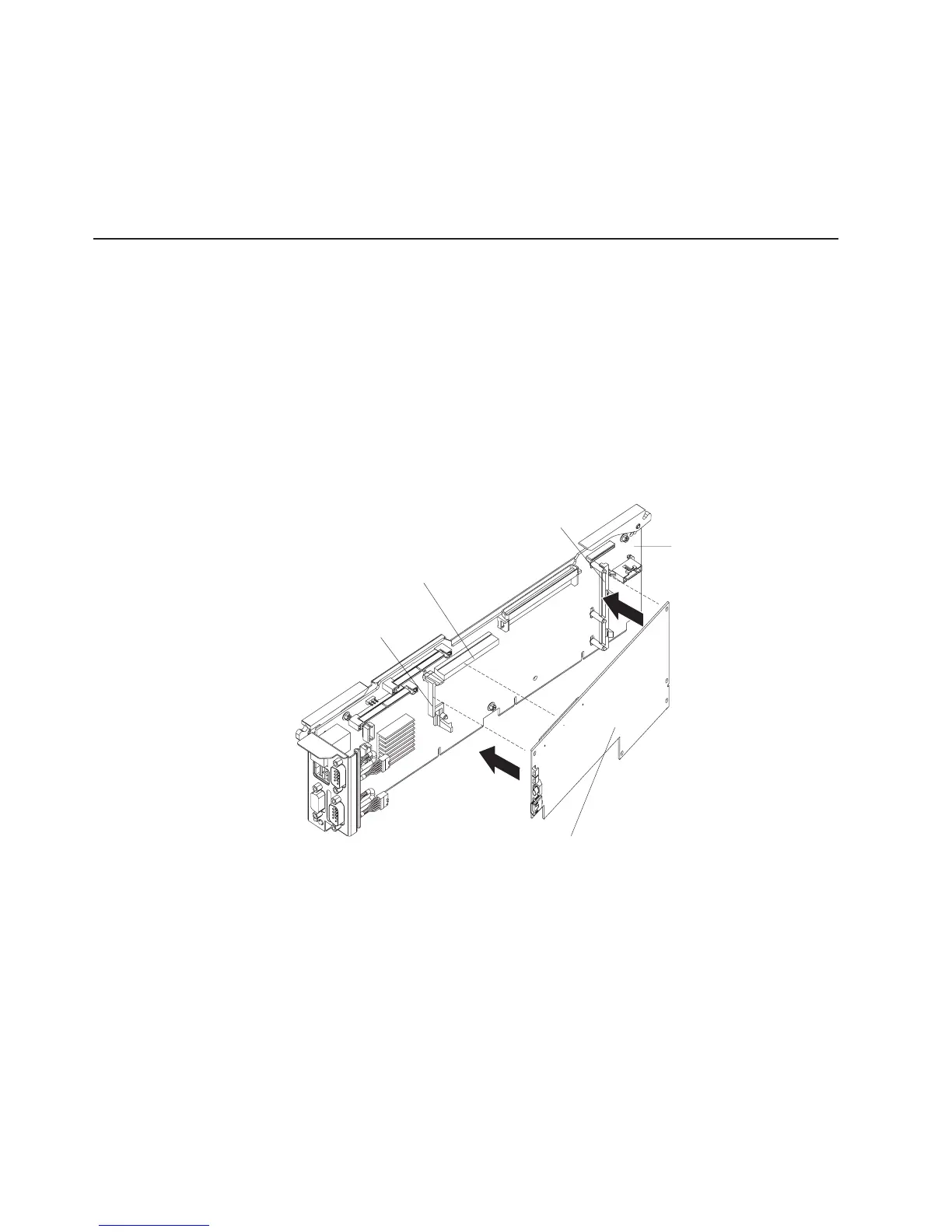

dedicated connector on the I/O board. The following illustration shows how to install
the Remote Supervisor Adapter II SlimLine.
Note: If a Remote Supervisor Adapter II SlimLine is installed in the server, when
you turn on the server for the first time, the server might appear to be unresponsive
for an unusual length of time (one minute to several minutes).
I/O board
Remote Supervisor Adapter II SlimLine
Remote Supervisor Adapter II SlimLine connector
Rear standoff
Front standoff
Complete the following steps to install a Remote Supervisor Adapter II SlimLine.
1. Note the location of the internal cables connected to the I/O board; then,
remove the cables from the I/O board and move them out of the way.
2. Remove the I/O board from the server and place the I/O board on a flat,
static-protective surface with the connectors facing up.
3. Insert the front of the adapter into the front standoff; then, rotate the rear of the
adapter into the rear standoff.
4. Press the Remote Supervisor Adapter II SlimLine firmly into the connector.
5. Reinstall the I/O board in the server and reconnect the internal cables to the I/O
board.
20 IBM xSeries 366 Type 8863: Installation Guide
