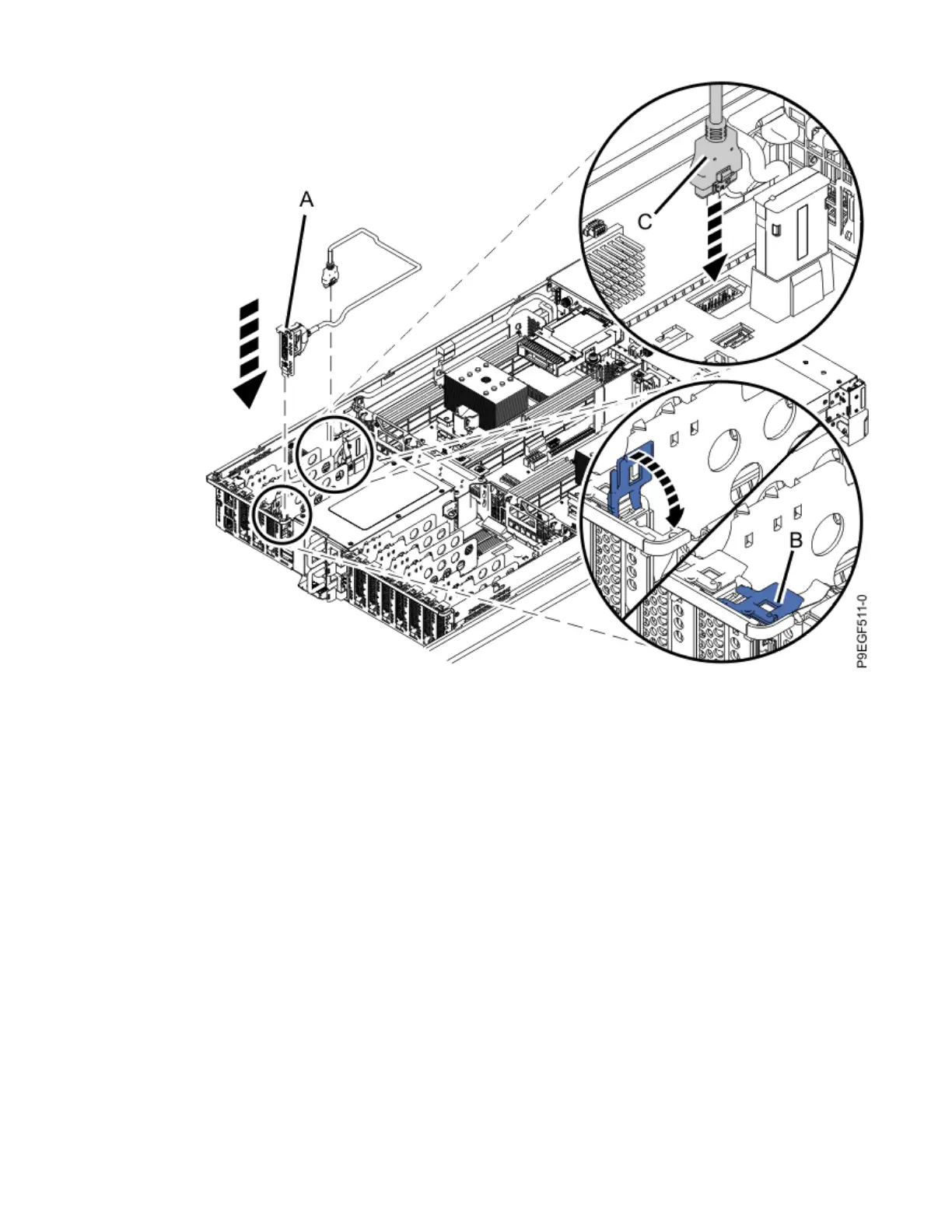

Figure 112. Replacing the rear USB cable
b) Press the adapter latch (B) down and route the cable behind the PCI adapters and spacers to the
plug on the right side of the system.
c) Plug the other end of the rear USB cable (C) into the connector on the system backplane.
d) Using your labels, replace any cables that you removed from the USB port.
24. Attach the front USB cable:
a) Plug the USB cable (A) into the connector on the system backplane as shown in the following
gure. The connector on the system backplane that has the USB port symbol with an arrow that
points to the front of the system.
Figure 113. Plugging the front USB cable into the system backplane
112
Power Systems: System backplane
