5-12

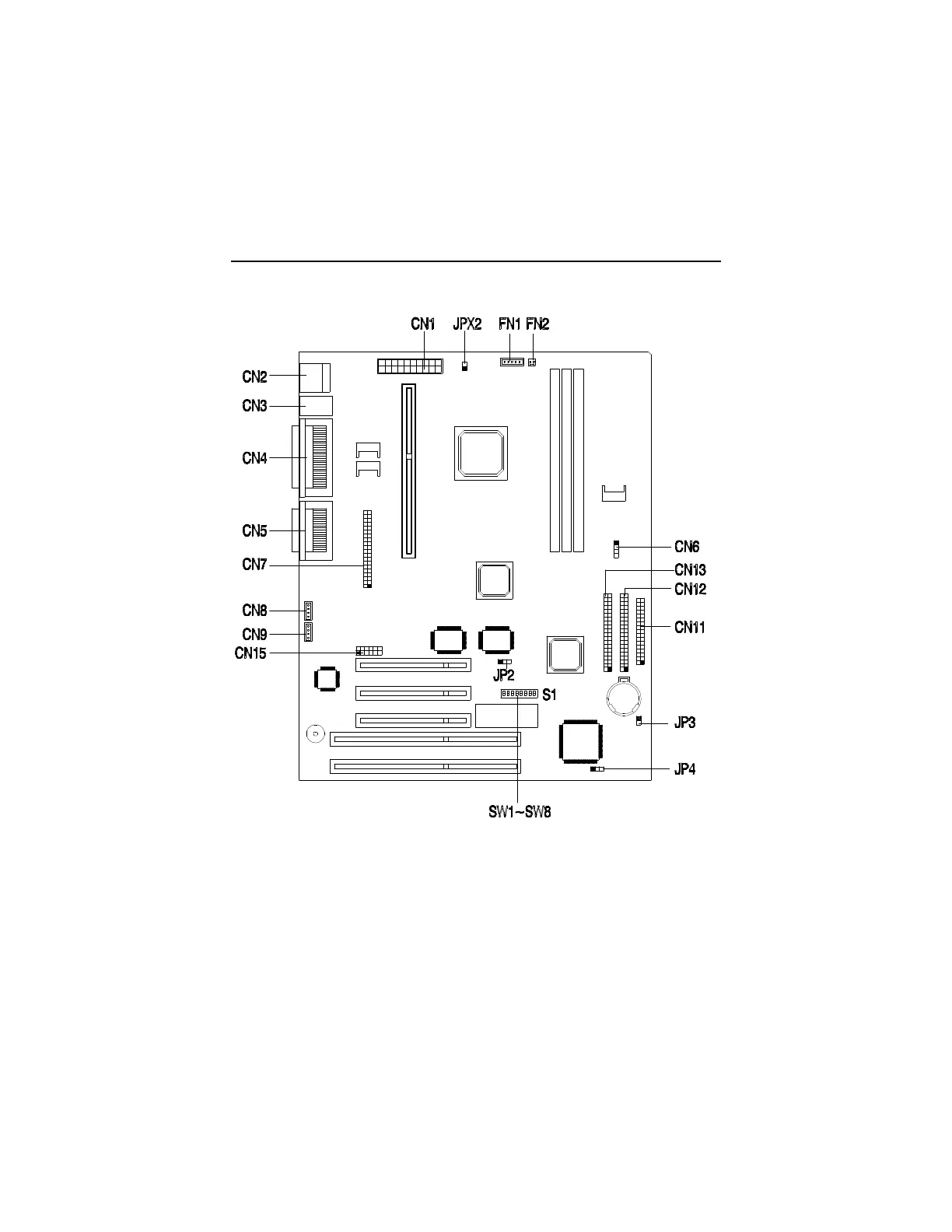

Machine Type 2139 System Board Layout
NOTE:
The blackened pin of a jumper represents pin 1.
Figure 5- 3 System Board (Machine Type 2139) Jumper and Connector
Locations
