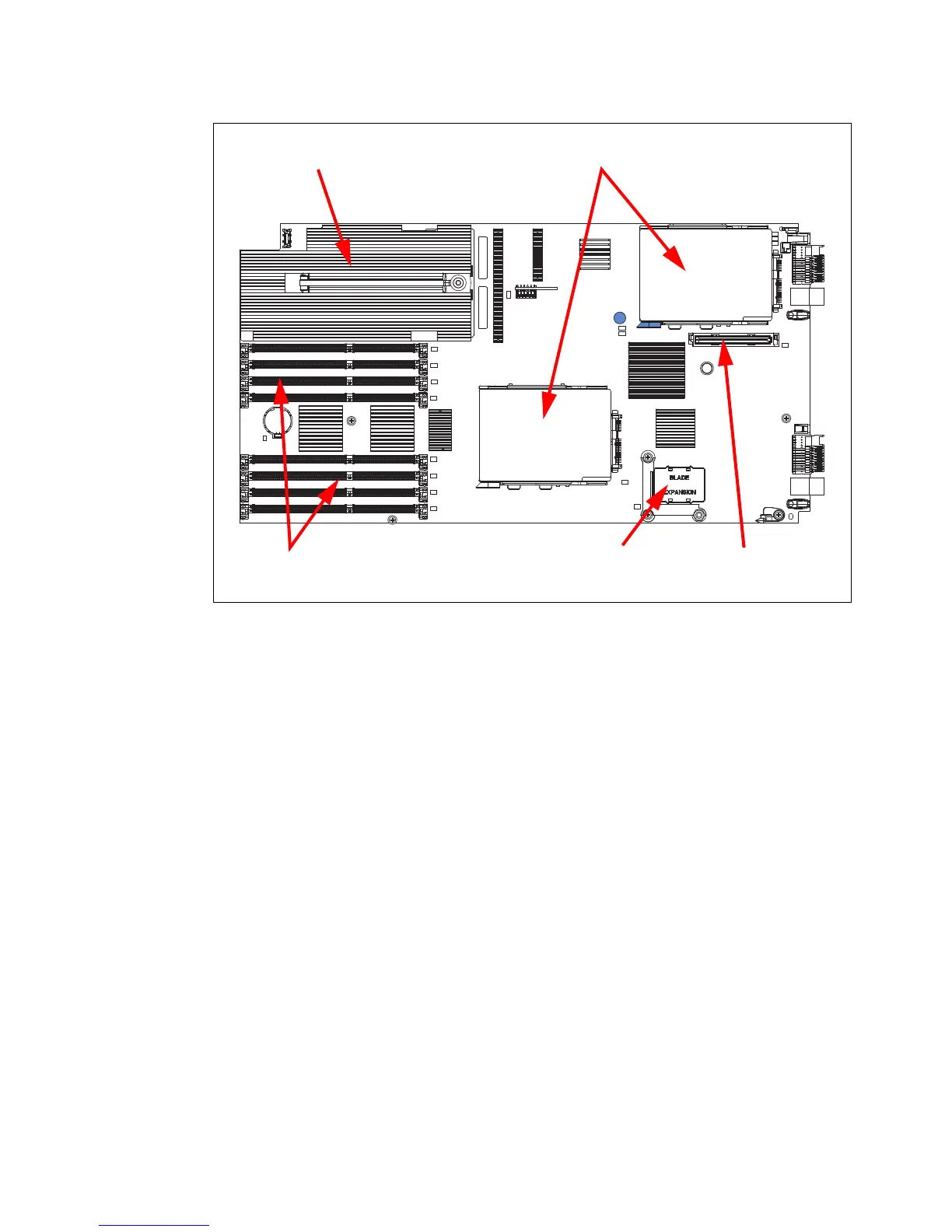

Figure 1-10 Top view of PS700 blade server
Disk:
– Two disk drive bays support one or two SAS HDD
– Hardware mirroring RAID 0, RAID 1, and RAID 10
On-board integrated features:
– Service processor (SP)
– Two 1 GB Ethernet ports (HEA)
– SAS Controller
– USB Controller that routes to the USB 2.0 port on the media tray
– One Serial over LAN (SOL) Console through SP
Expansion Card I/O Options:
– One CIOv expansion card slot (PCIe)
– One CFFh expansion card slot (PCIe)
POWER7 4-core
processor
Two disk drive
bays
Eight DIMMs
sockets
CIOv
connector
CFFh
connector
