1.5.3 PS702 system features

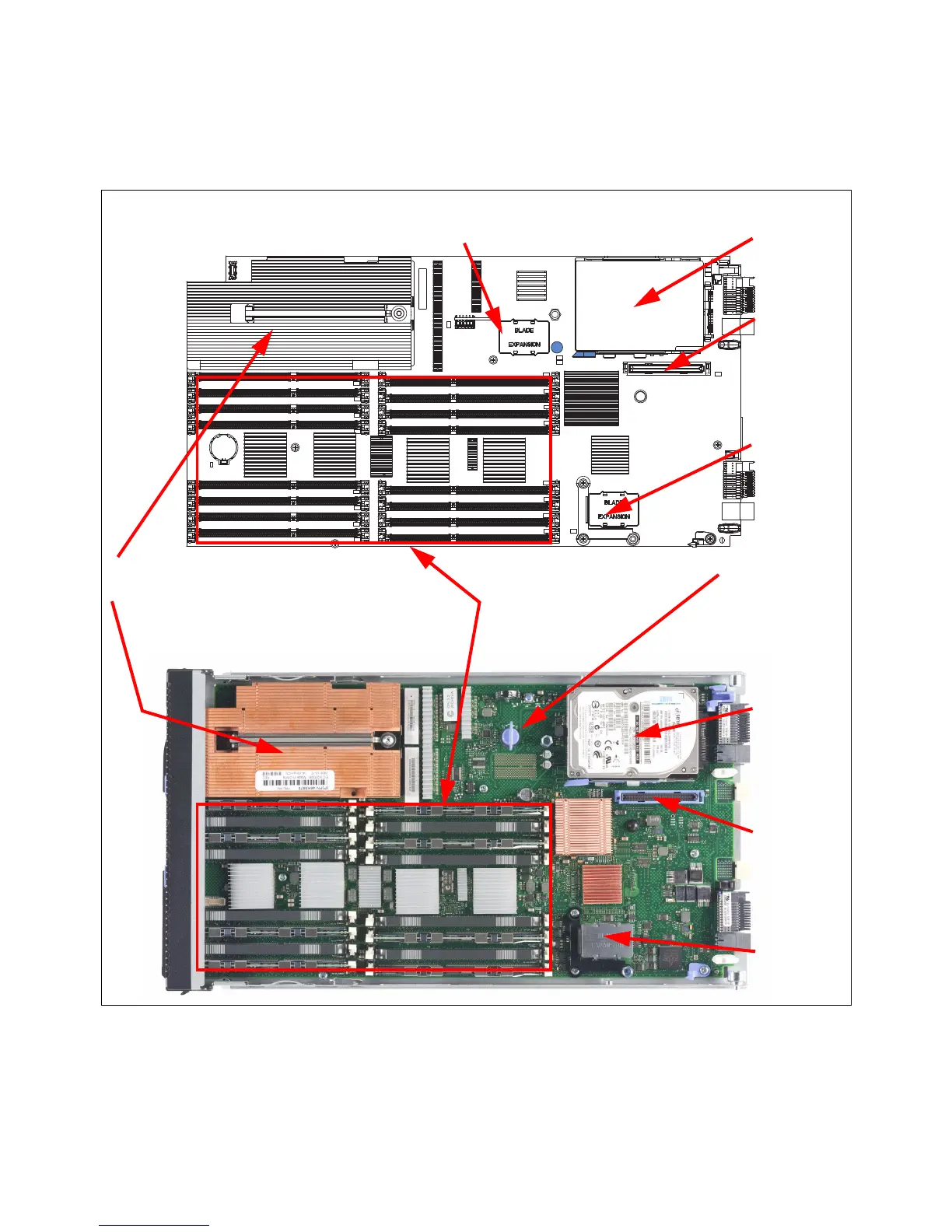

The two halves of the BladeCenter PS702 are shown in Figure 1-12.
Figure 1-12 Top view of PS702 blade server
CIOv
connector
CFFh
connector
Screw-down
point to attach to
PS702 base
blade
32 DIMM sockets
(16 in each blade)
Connector to join the
blades together
PS702 expansion blade (FC 8358)
PS702 base blade
Two POWER7
8-core processors
CIOv
connector
CFFh
connector
Disk drive
bay
Disk drive
bay
